Specifications
Platform
Desktop
Product Family
AMD Ryzen™ Processors
Product Line

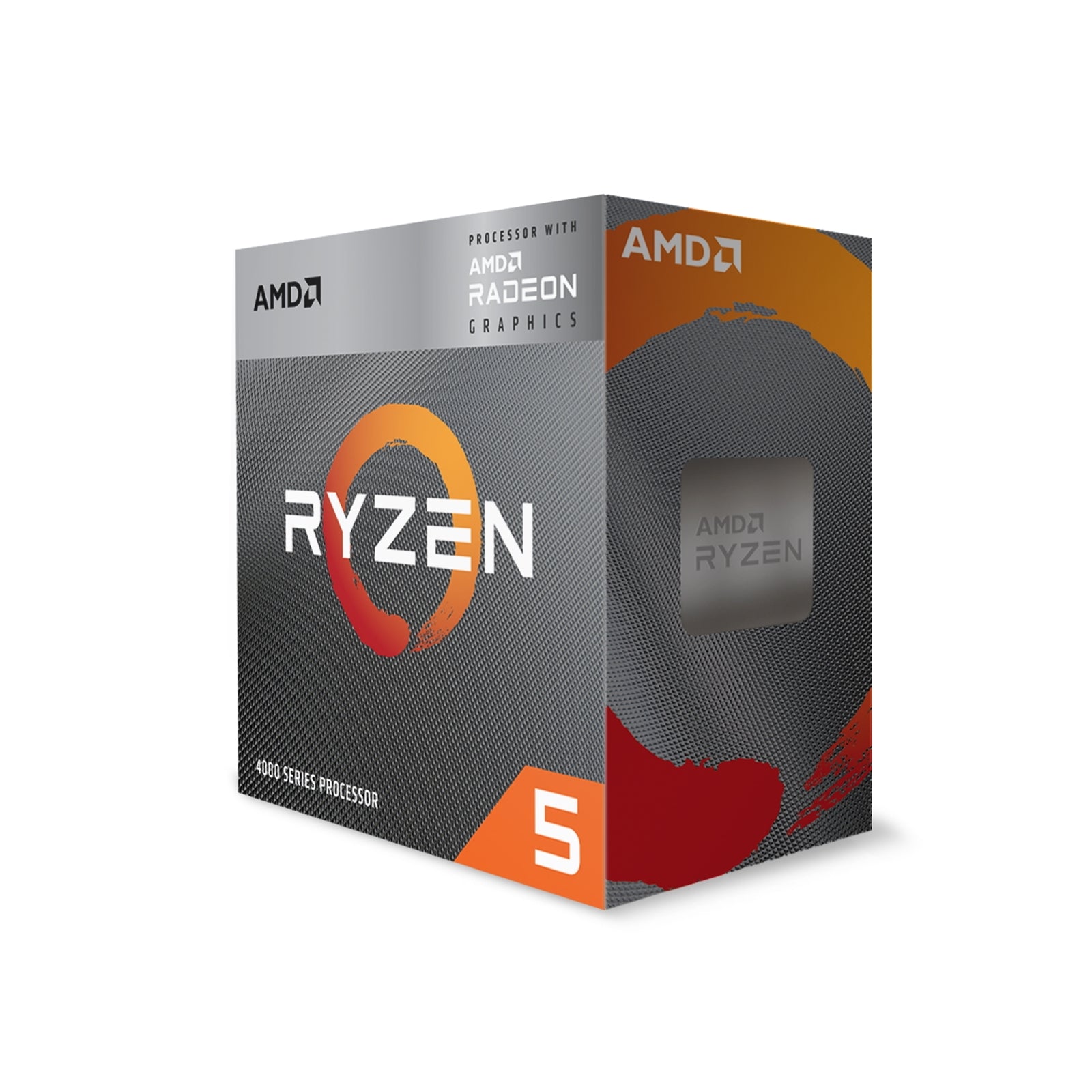

AMD Ryzen™ 5 4000 G-Series Desktop Processors with Radeon™ Graphics
Former Codename
"Renoir"
Architecture
"Zen 2"
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 4.2GHz
Base Clock
3.7GHz
L1 Cache
384KB
L2 Cache
3MB
L3 Cache
8MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Package Die Count
1
Unlocked for Overclocking
Yes
CPU Socket
AM4
Supporting Chipsets
X570
X470
X370
B550
B450
B350
A520
A320
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)
95°C
Launch Date
7/21/2020
OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
USB Type-C® Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
0
Native SATA Ports
2
PCI Express® Version
PCIe® 3.0
Native PCIe® Lanes (Total/Usable)
24/20
NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
System Memory Specification
Up to 3200MHz
Max Memory Speed
2x1R - DDR4-3200
2x2R - DDR4-3200
4x1R - DDR4-2933
4x2R - DDR4-2667
ECC Support
No
Integrated Graphics
Yes
Graphics Model
Radeon™ Graphics
Graphics Core Count
7
Graphics Frequency
1900 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
