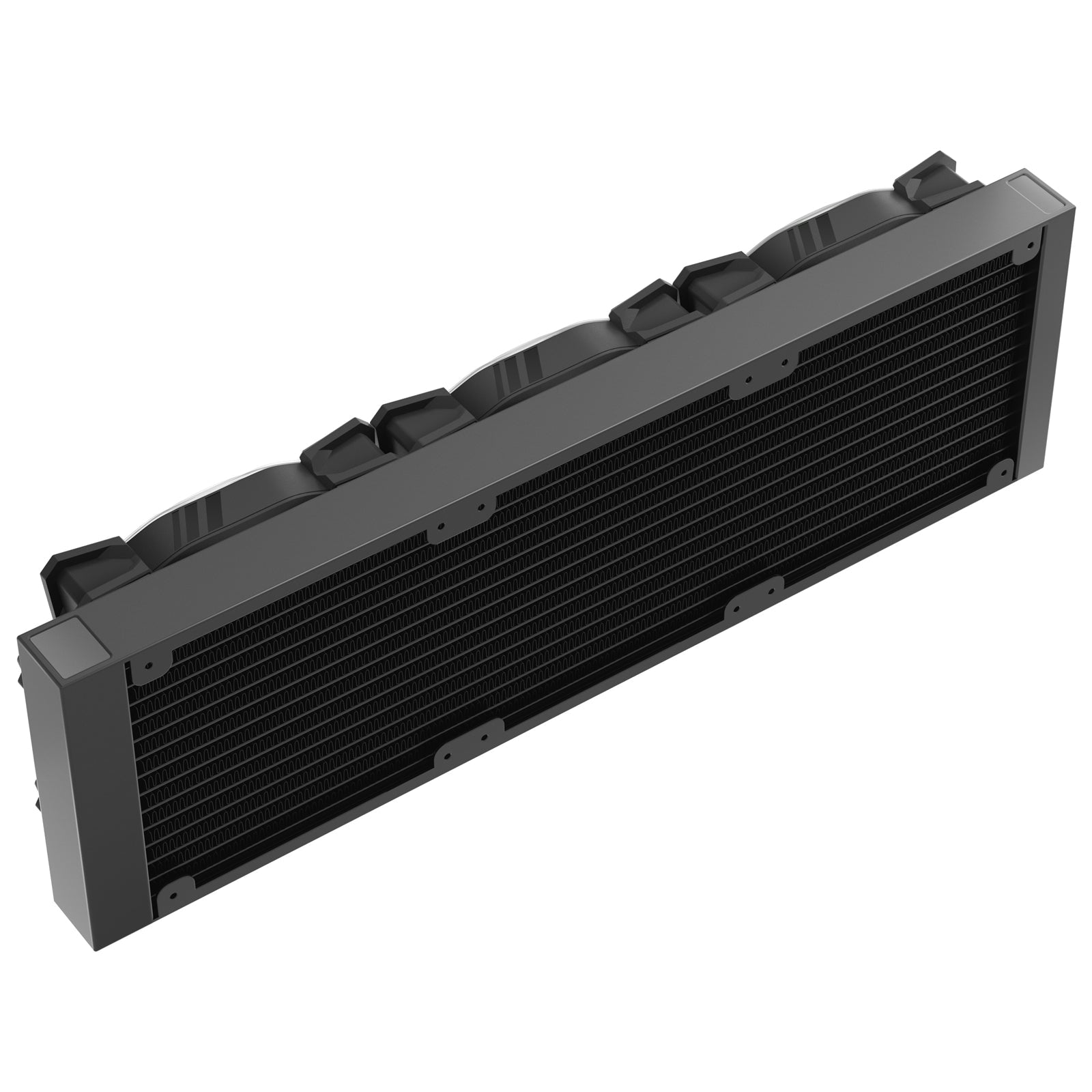

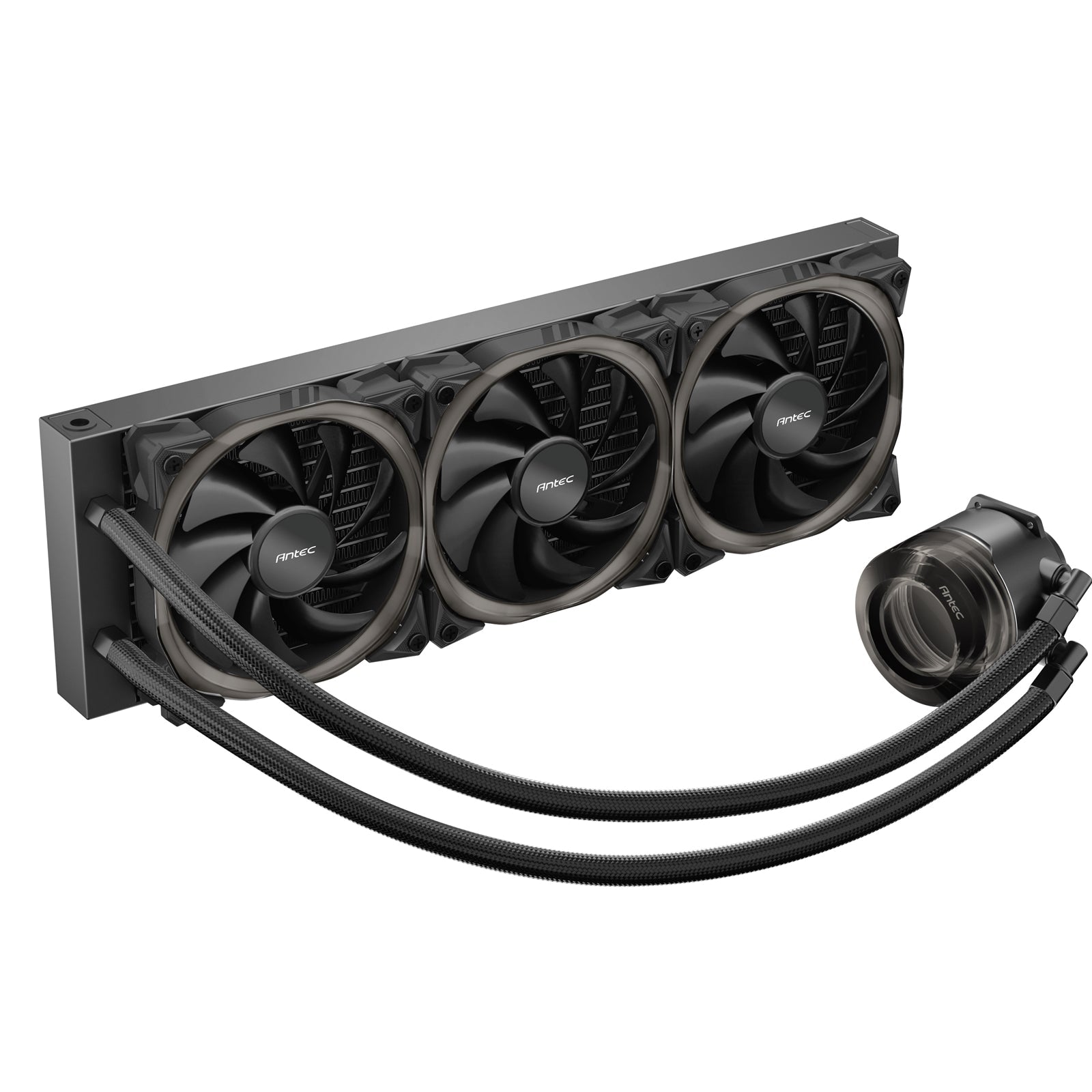

Radiator Specifications
Radiator Dimensions: 394 x 120 x 27 mm
Radiator Material: Aluminum

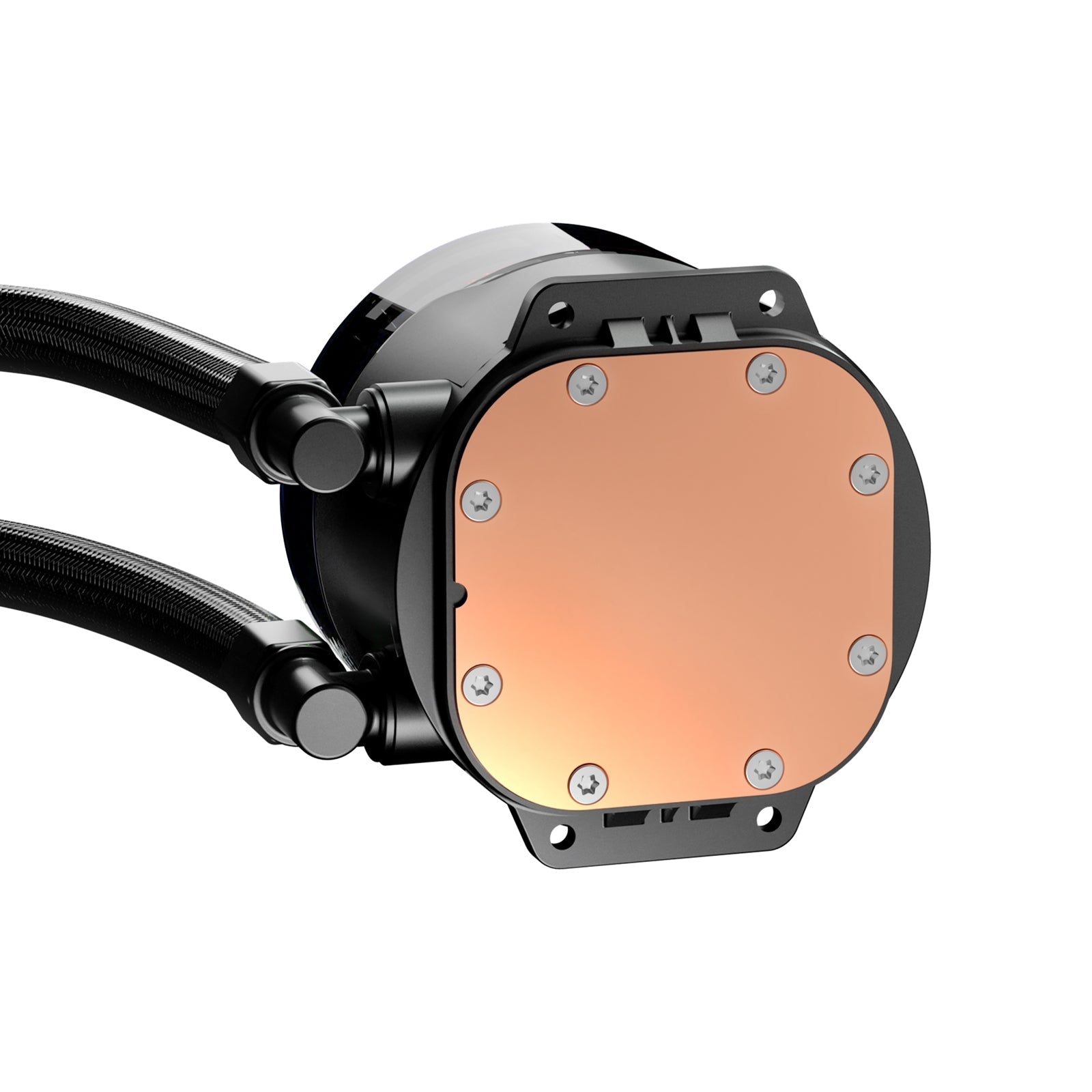

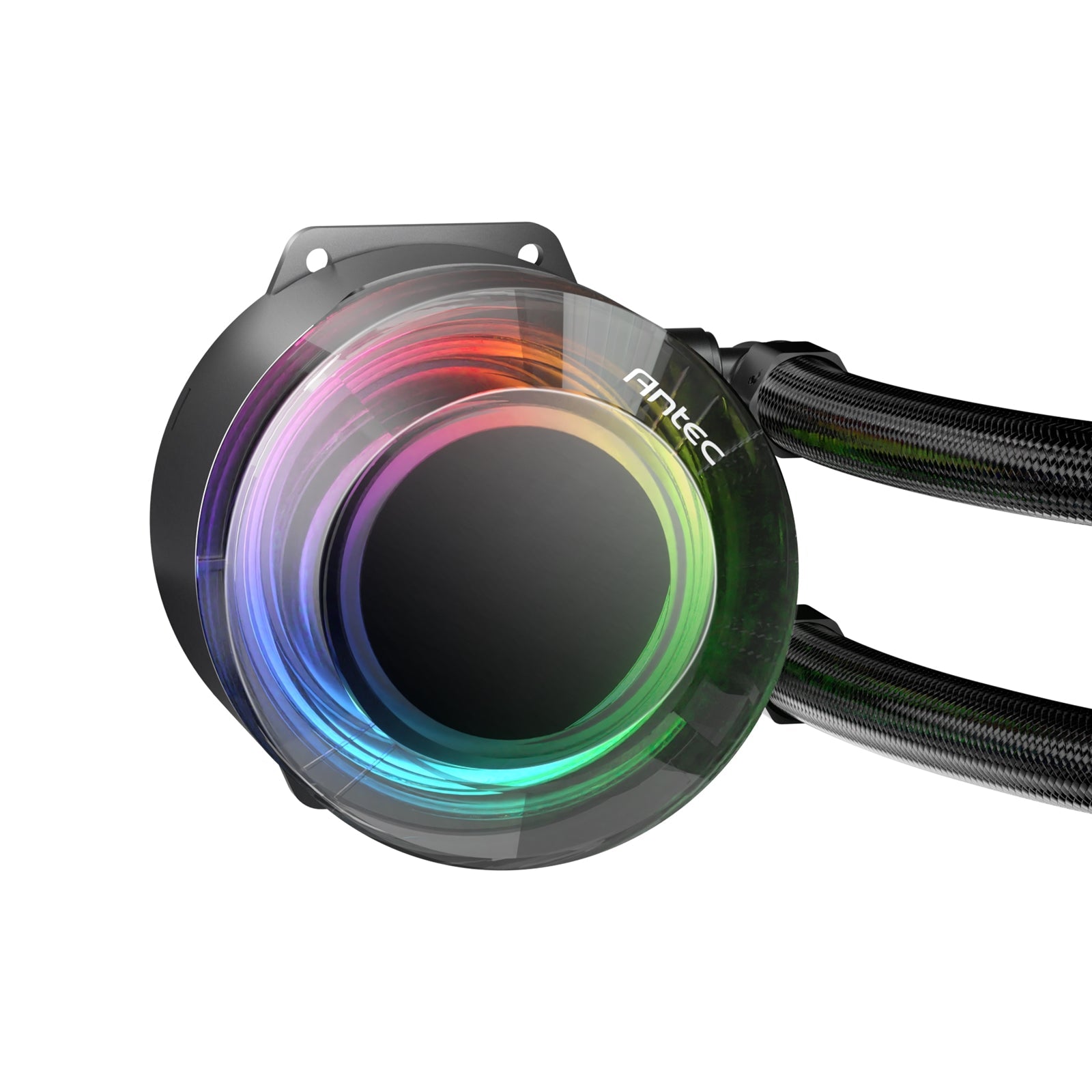

Pump Specifications
Dimensions: 67 x 48.5 mm
Rating Voltage: DC 12 V
Minimum Startup Voltage: = 5.0 V
Fan Speed: 2800+/-10% RPM
Rated Current: 0.25+/-20% A
Consumed Power: 3.0 W
Flow Rate: = 1300 mL / min
Water Pressure: 1.4M
Operation Temperature: -10°C ~ +60°C
Noise Level: = 28 dB(A)
Lifespan: 40,000 hours
Connector: PUMP: 3-pin / LED: 3-pin

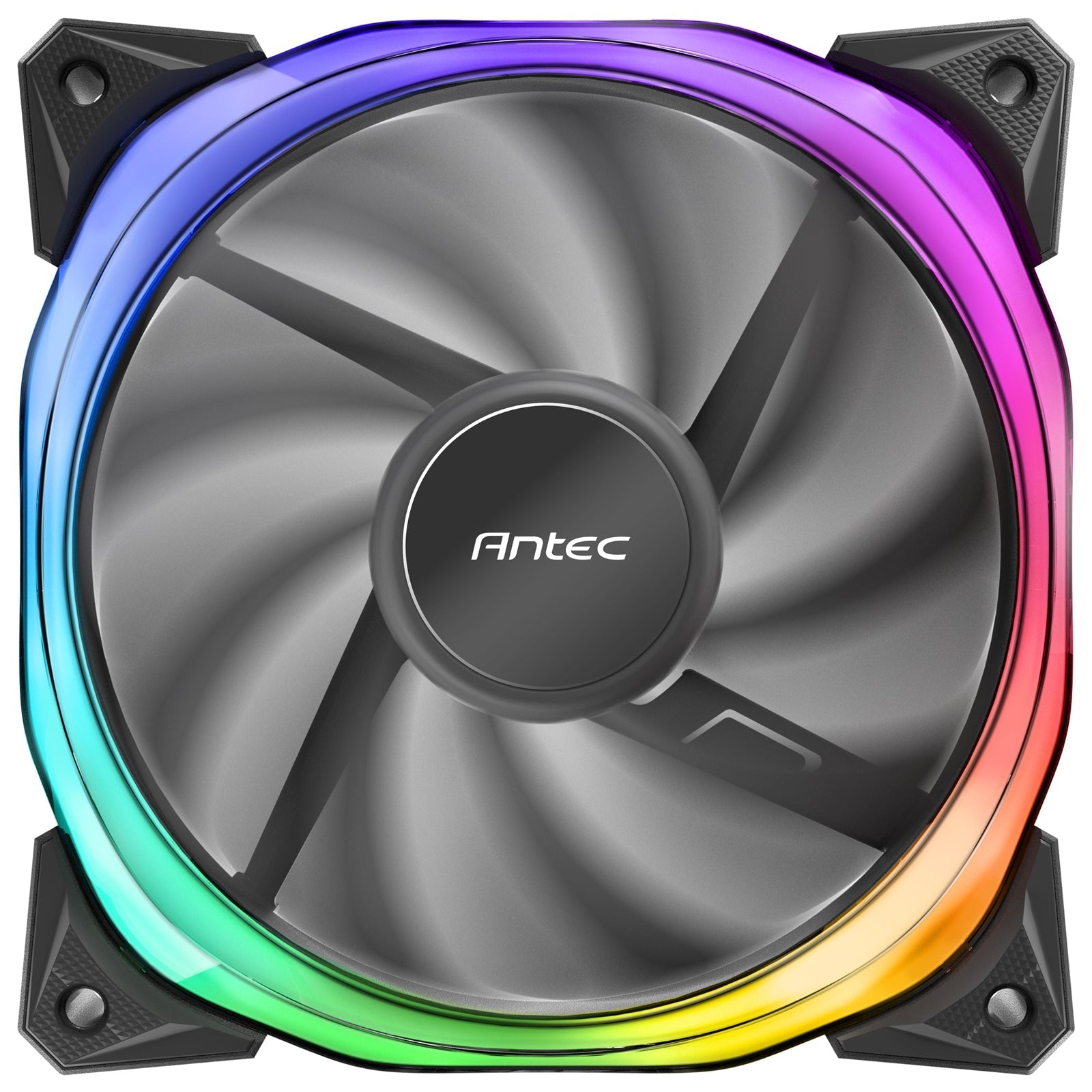

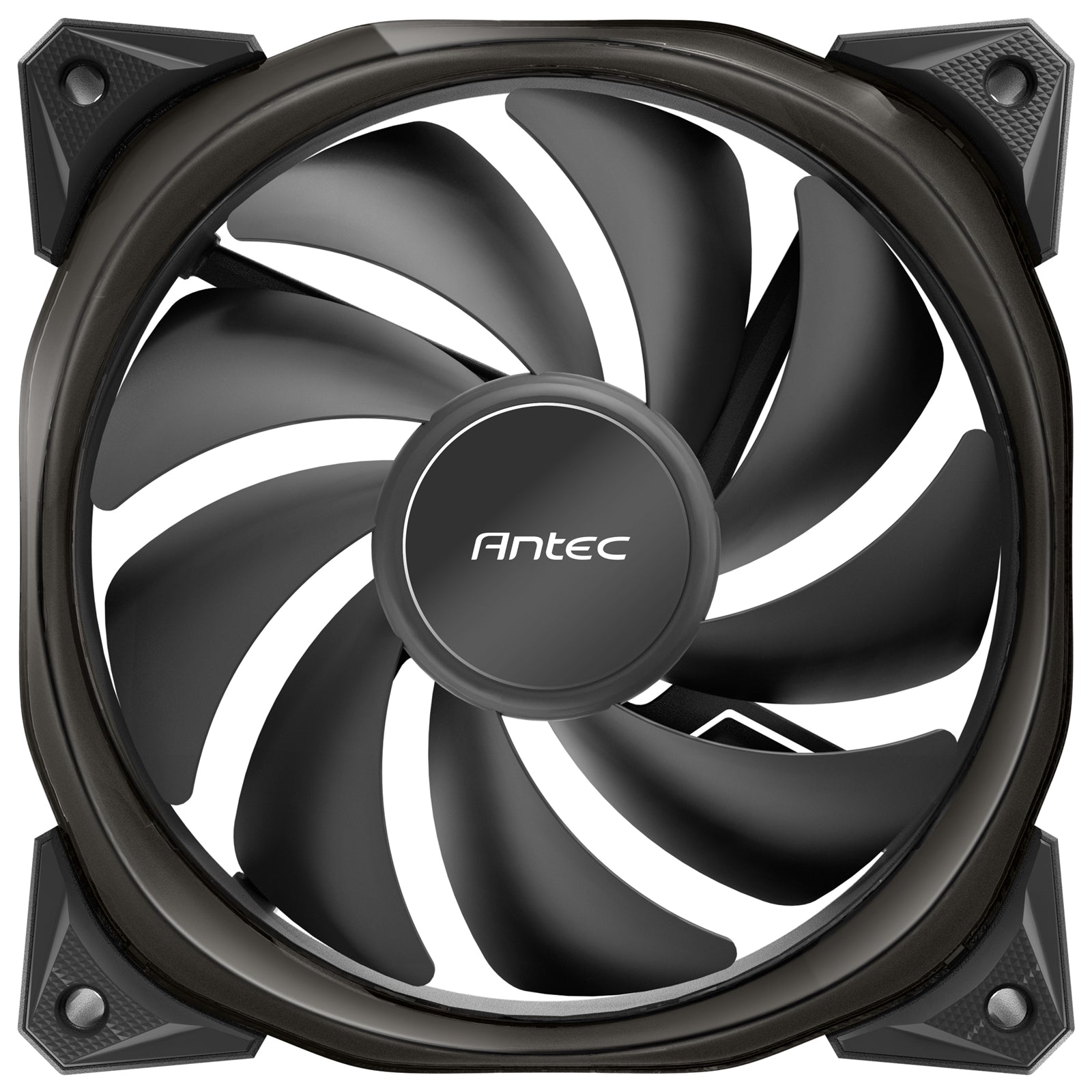

Fan Specifications
Model Name: Fusion 120 ARGB fan (AH12012FM1)
Fan Type: PWM Fan
Dimensions; 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
LED Type: Addressable RGB
Fan Speed: 600+/-200 ~ 2000+/-10% RPM
Airflow: 57.93 CFM (max.)
Air Pressure: 2.11 mmH2O (max.)
Fan Noise Level: 31.24 dB(A)
Lifespan: 40,000 hours
Connector: FAN: 4-pin PWM / LED: 3-pin
Rated Voltage: FAN: DC 12 V / LED: DC 5 V
Operation Voltage: FAN: DC 6.0-13.8 V / LED: DC 4.5-5.5 V
Rated Current: FAN : = 0.21 A / LED : = 0.58 A
Socket Compatibility
Intel: LGA 115X / 1200 / 1700 / 20XX
AMD: AM3 / AM4 / TR4
