General data

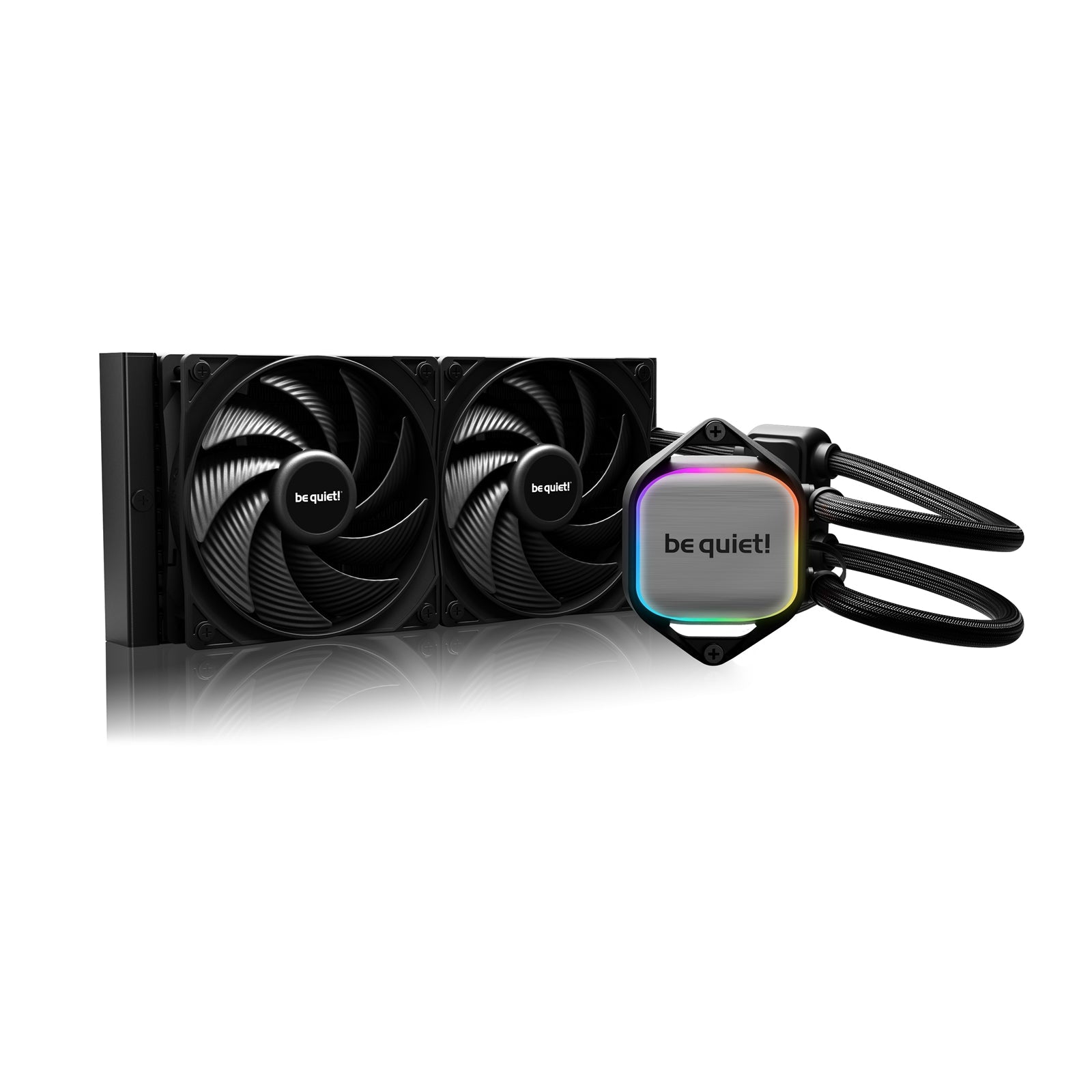

Model: Pure Loop 2 240mm
Dimensions radiator, incl. fan (H x W x D), (mm) 277 x 120 x 52
Dimensions Cooling block (H x W x D), (mm) 94.5 x 83 x 42
Total weight (kg): 1.1
Socket compatibility Intel 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD AM5 / AM4
Noise level (dB(A)) @ 50% / 75% /100% rpm 15.4 / 27.2 / 34.9
Number of fans: 2
Lighting Connector: 3-pin 5V Adressable
Tube length (mm): 400
Refill port: Yes
Socket Compatibility
Intel: 1150/1151/1155/1200/1700
AMD: AM4/AM5
Pump specifications
Pump speed (rpm): 5500
Pump adjustable (rpm): 4000 - 5500
Pump connector: 4-pin PWM

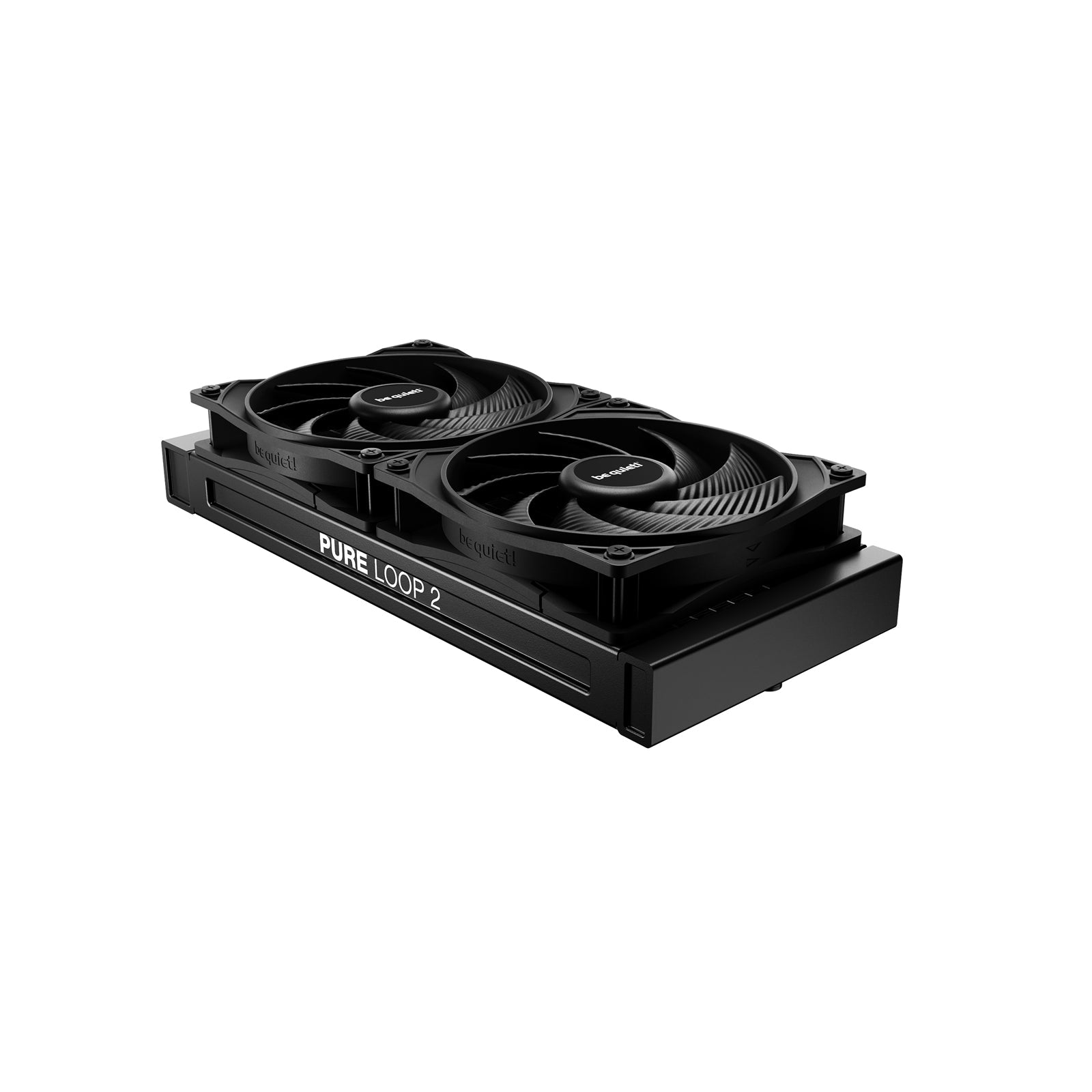

Radiator specifications
Dimensions (L x W x H), (mm): 120 x 277 x 27
Radiator material / finish aluminum / black spray painted
Base material / finish copper / nickel plated

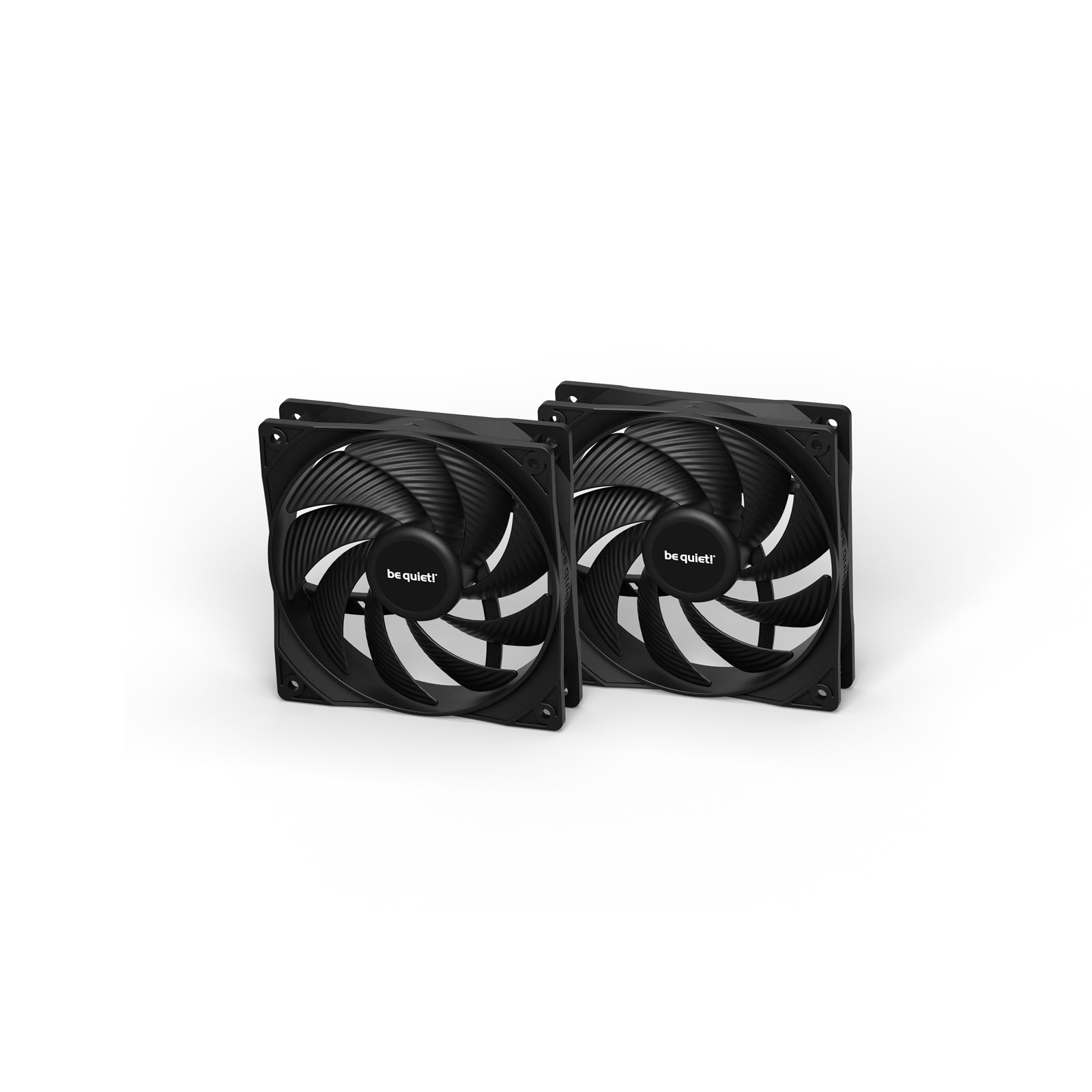

Fan specifications
Fan model: Pure Wings 3 120mm PWM high-speed
Fan dimensions (mm): 120 x 120 x 25
Speed @ 100% PWM (rpm): 2100
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.45
Input power (W): 5.4
Connector: 4-pin PWM
Cable length (mm): 500
Lifespan (h / 25°C): 80,000

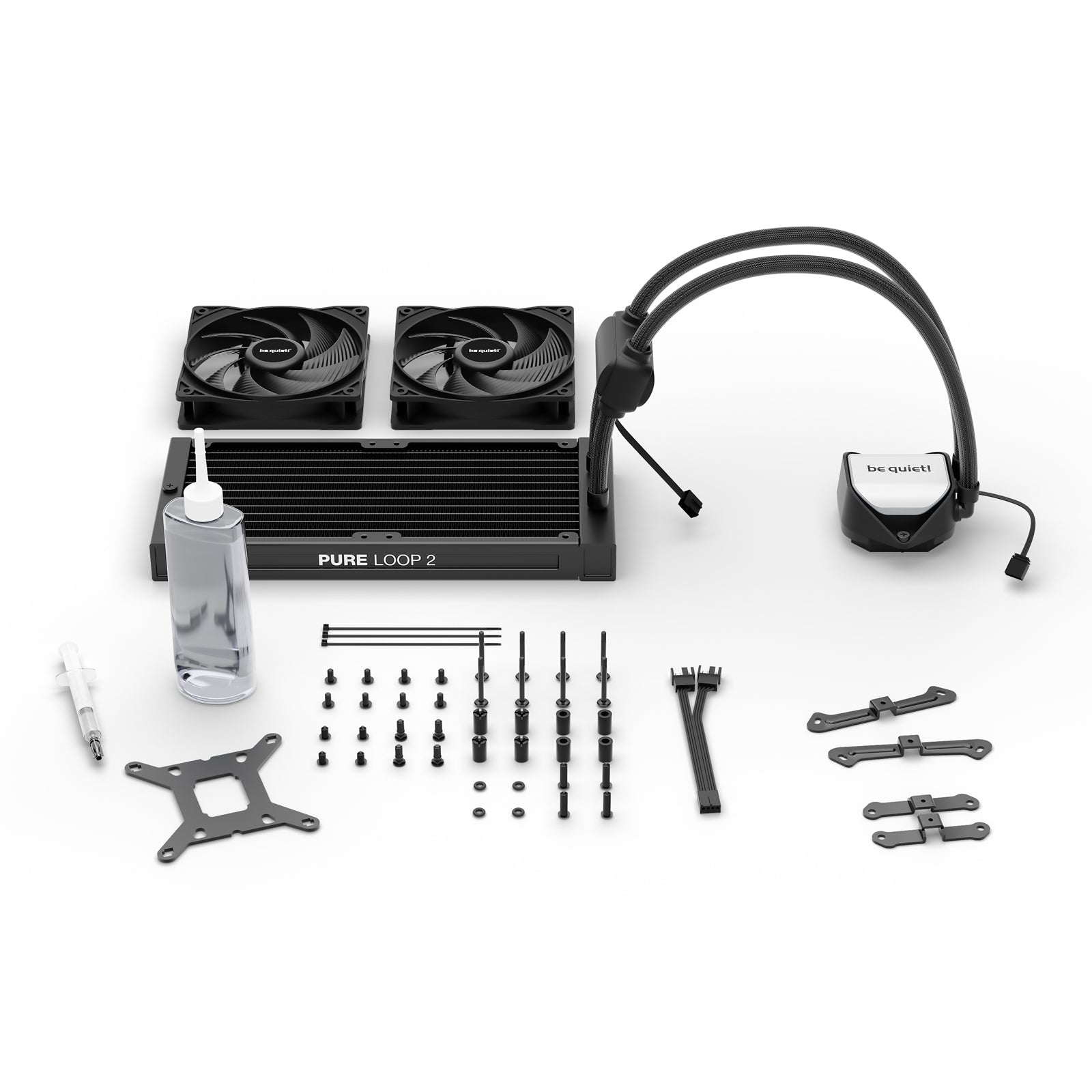

Accessories
Thermal grease (Type): Included
Mounting set: Intel, AMD
Adapter cables: Y-cable
Bottle of coolant (ml): Yes / 100
ARGB controller with SATA cable: No
ARGB-PWM-Hub: No
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
Safety certifications
Approvals: CE, FCC, UKCA, UL
Environmental directives
RoHS: Yes
WEEE: Yes
Triman: Yes
Service
Warranty (Years): 3
International hotline / free of charge: Yes / DE, FR
