General Data

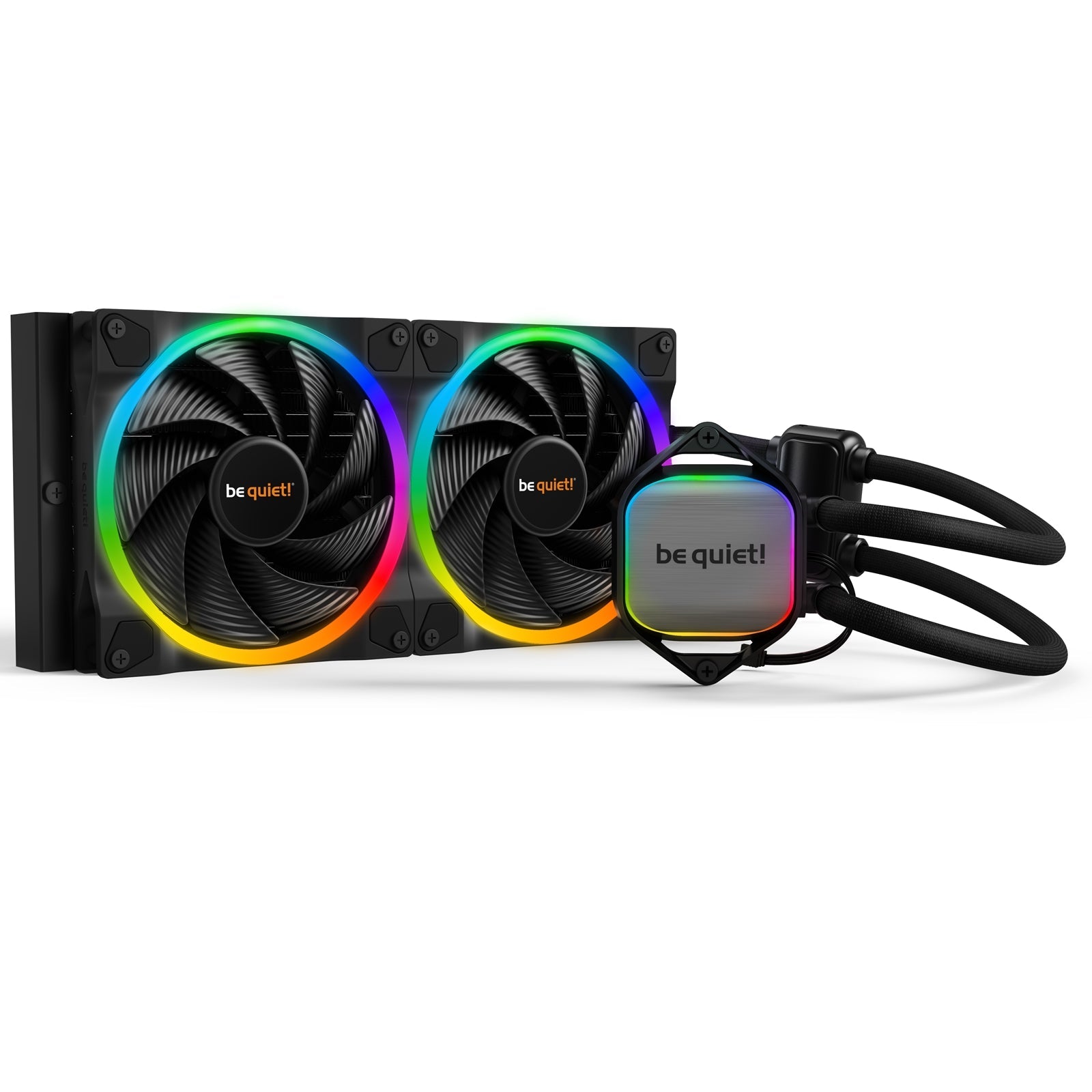

Model: Pure Loop 2 FX 280mm
Dimensions radiator, incl. fan (H x W x D), (mm): 317 x 140 x 52
Dimensions Cooling block (H x W x D), (mm): -
Total weight (kg): 1.29
Socket compatibility Intel: 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4
Noise level (dB(A)) @ 25 % / 50% /100% rpm: 10.8 / 22.4 / 32.8
Number of fans: -
Lighting Connector: 3 Pin 5V Adressable
Tube length (mm): 400mm
Refill port: Yes
Pump Specifications
Pump speed (rpm): 5500
Pump adjustable: 4000 - 5500 rpm
Pump connector: 4-pin PWM

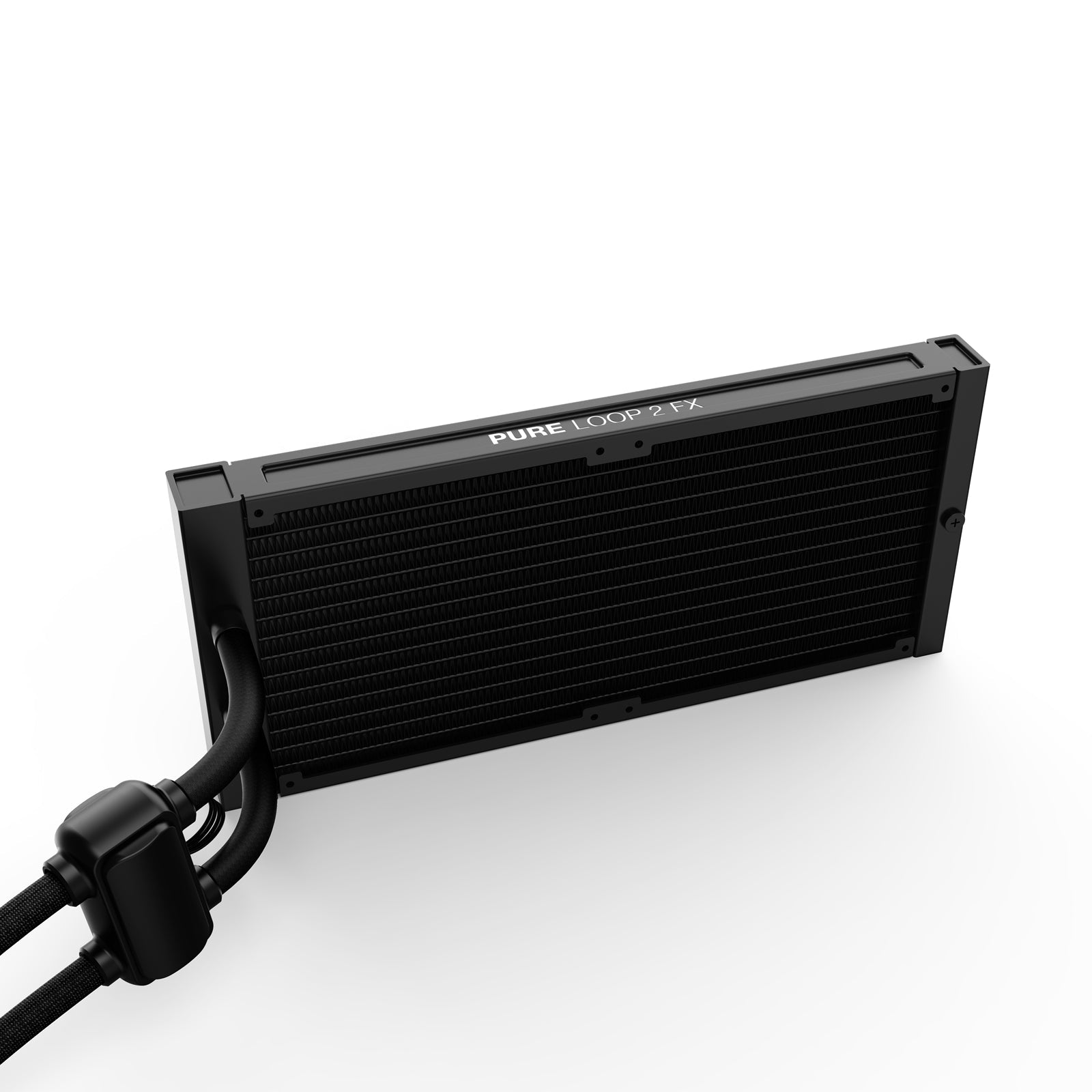

Radiator Specifications

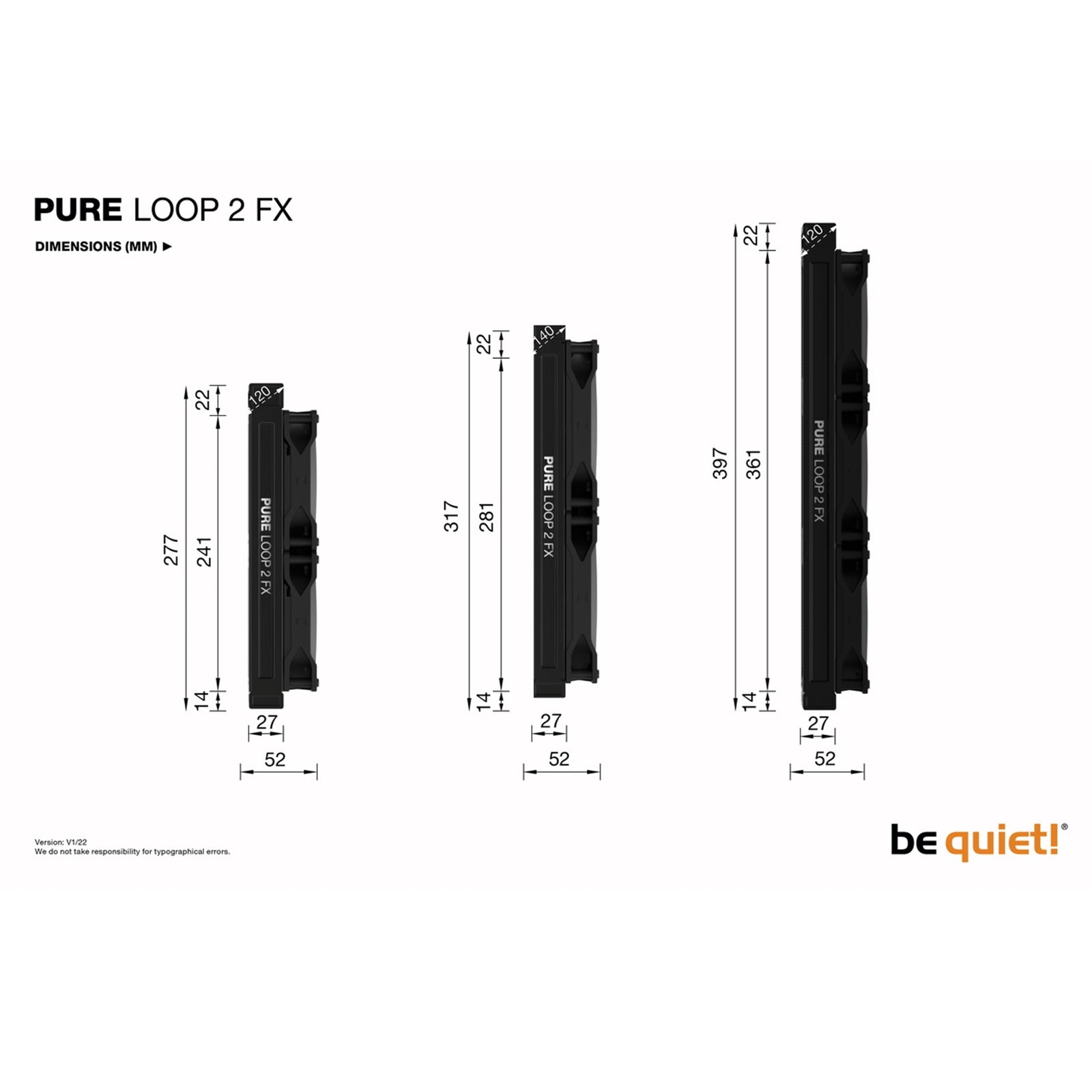

Dimensions (H x W x D), (mm): 317 x 140 x 27
Radiator material / finish: aluminum / black spray painted
Base material / finish: copper / nickel plating
Fan Specifications
Fan model: 2x Light Wings 140mm PWM high-speed
Fan dimensions (mm): 140 x 140 x 25
Speed @ 100% PWM (rpm): 2200
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.39
Input power (W): 4.68
Connector: 4-pin PWM
Cable length (mm): 500
Lifespan (h / 25°C): 60,000

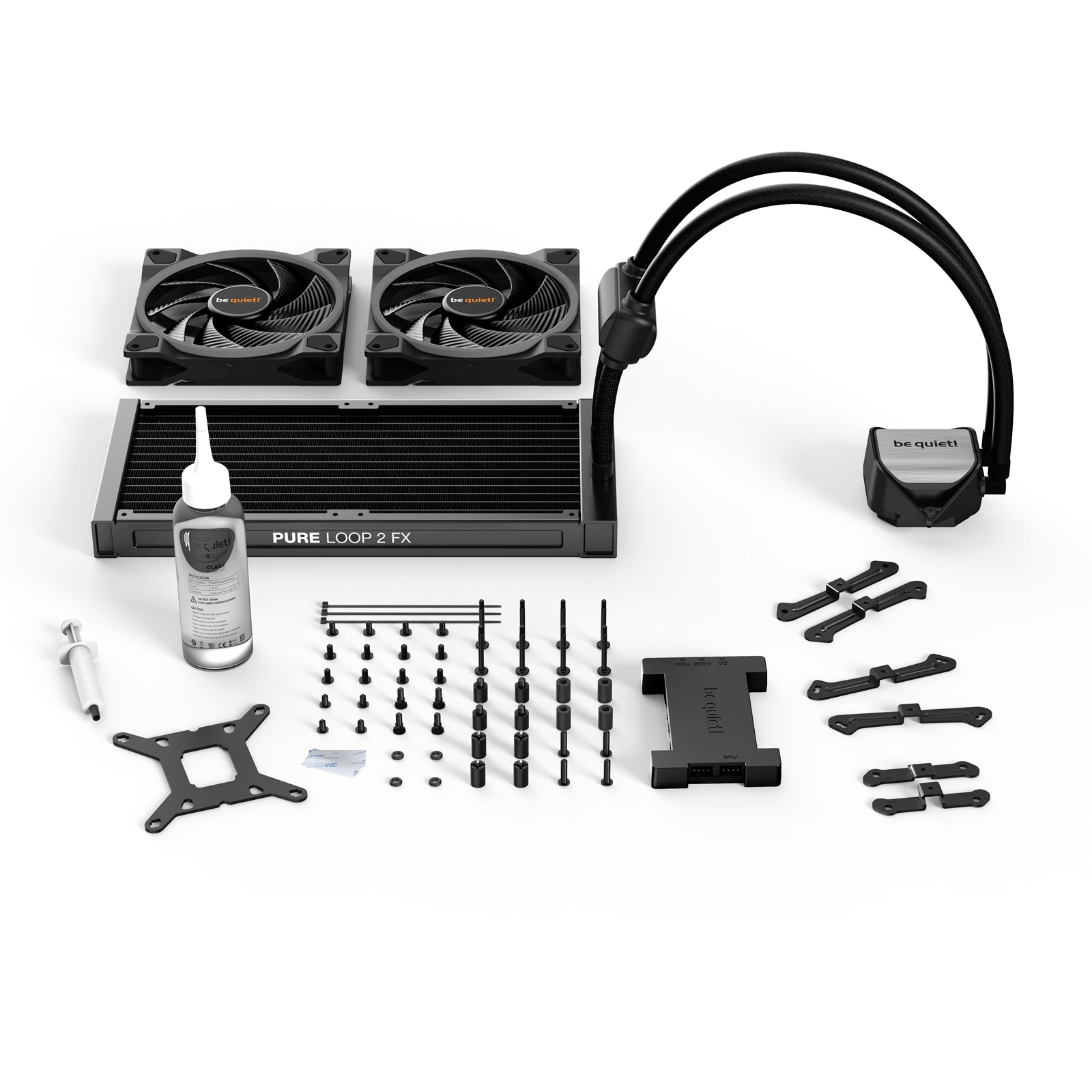

Accessories
Thermal grease (Type): Included
Mounting set: Intel, AMD
Adapter cables: -
Bottle of coolant (ml): Yes / 100
ARGB controller with SATA cable: -
SATA cable for ARGB controller: -
ARGB-PWM-Hub: Yes
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
Logistics Data
Article number: BW014
Dimensions, package (L x W x H), (mm): 365 x 152 x 205
Gross weight, package (kg): 2.35
