General Data

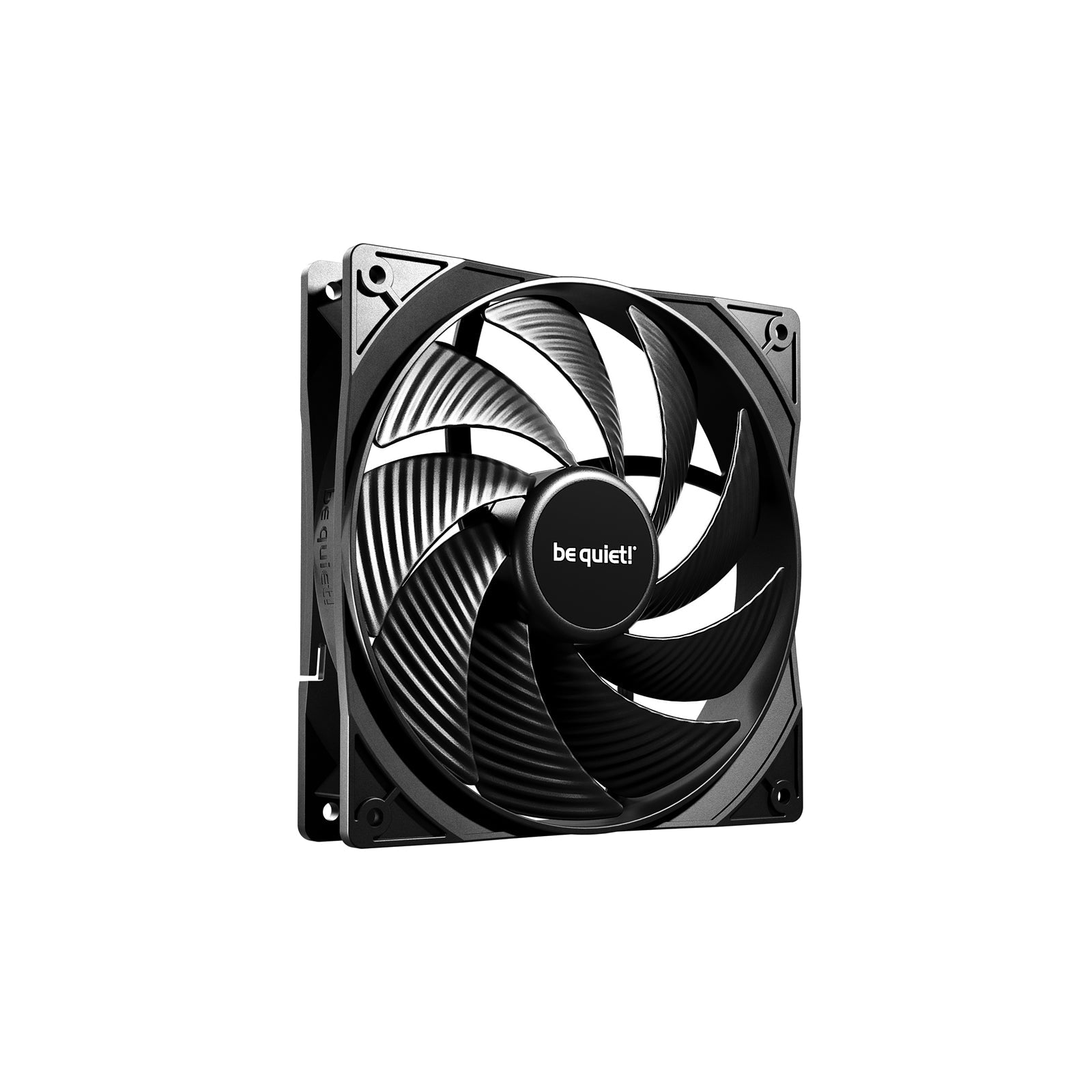

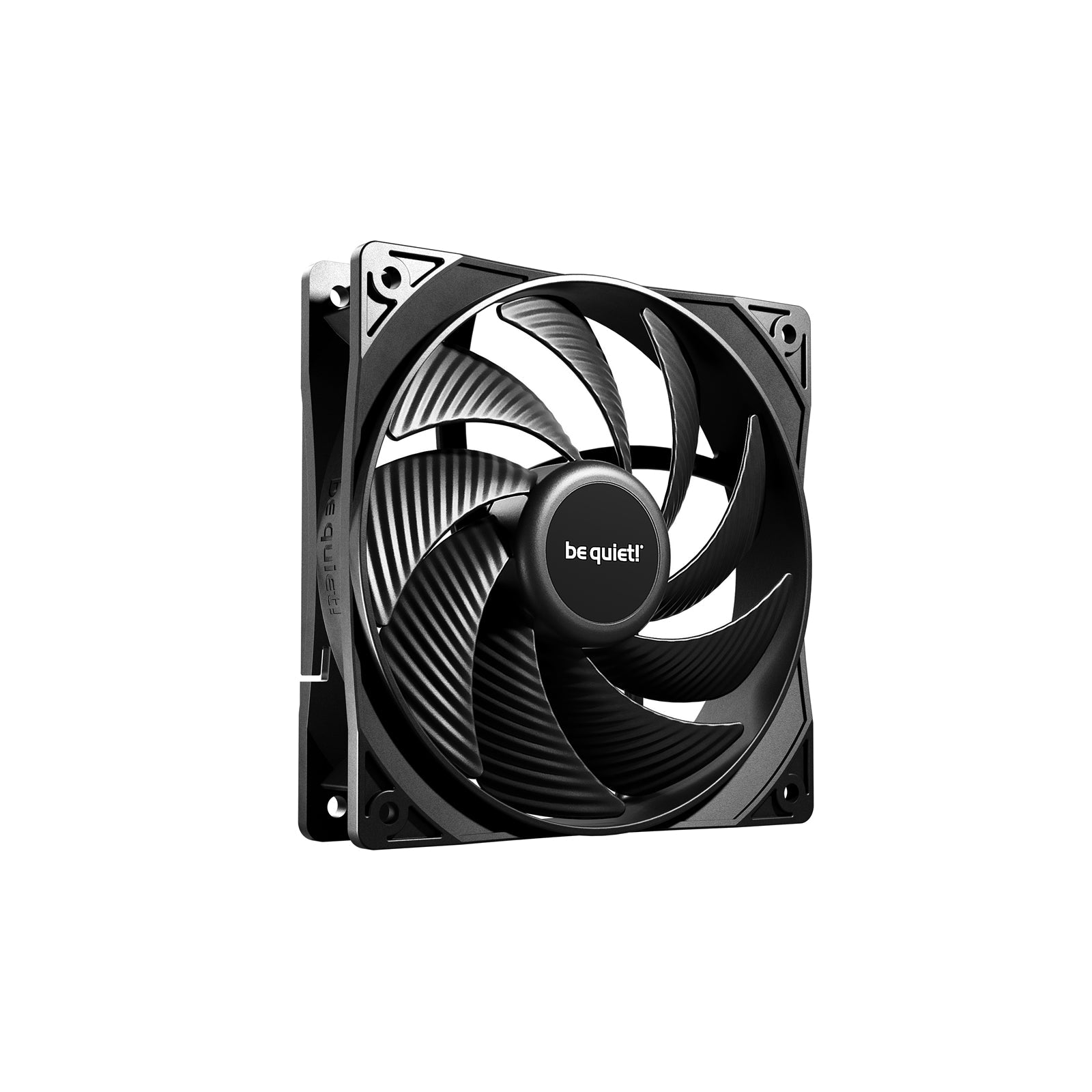

Model: Pure Wings 3 PWM high-speed
Dimensions (mm): 120 or 140
Color option: Black
Lighting: No
Fan speed at 100% PWM / 12V (rpm): 2100 (120mm)| 1800 (140mm)
Noise level at 100% PWM / 12V (dB(A)): 30.9
Airflow at 100% PWM / 12V (CFM / m3/h): 59.6 / 101.2
Air Pressure at 100% PWM / 12V (mm H2O): 2.41
Mechanical Specifications
Dimensions (L x W x H), (mm): 120/140 x 120/140 x 25
Weight incl. fixed cables (g): 149 / 188
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: No
Screw fixing: Yes
Cables / Connectors
Daisy-chain compatible: No
Lighting connector: No
Connector: 4-pin PWM
Cable length (mm): 460
Cable sleeve: No
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h): 59.6 / 101.2
Air Pressure at 100% PWM / 12V (mm H2O): 2.41
Noise level at 100% PWM / 12V (dB(A)): 30.9
Lifespan (h / 25°C): 80,000
Zero RPM mode: No
Electrical specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.13
Safety current (A): 0.30
Input power (W): 3.6
Rated Current LED (A): No
Accessories
3-pin to 4-pin 12V-connector: No
12V to 7V adapter: No
12V to 5V adapter: No
Screws: 4
Push pins: No
hard plastic washer: No
Others: No
Safety Certification
Approvals: CE / RoHS / RU / UKCA / WEEE
Environmental Directives
RoHS: Yes
WEEE: Yes
Triman: Yes
Service
Warranty (Years): 3
International hotline / free of charge: ? / DE, FR, US
