General Data
Model: Shadow Rock TF 2
TDP (W): 160
Color option: Silver
Overall dimensions without mounting material (L x W x H), (mm): 137 x 165 x 87
Total weight (kg): 0.68
Socket compatibility Intel: 775 / 115x / 1200 / 1366 / 2011(-3) Square ILM / 2066
Socket compatibility AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
Overall noise level (dB(A)) @ 50/75/100% (rpm): 11.9 / 19.3 / 24.4
Number of fans: 1
Decoupled fan mounting: -
Heatsink Specifications

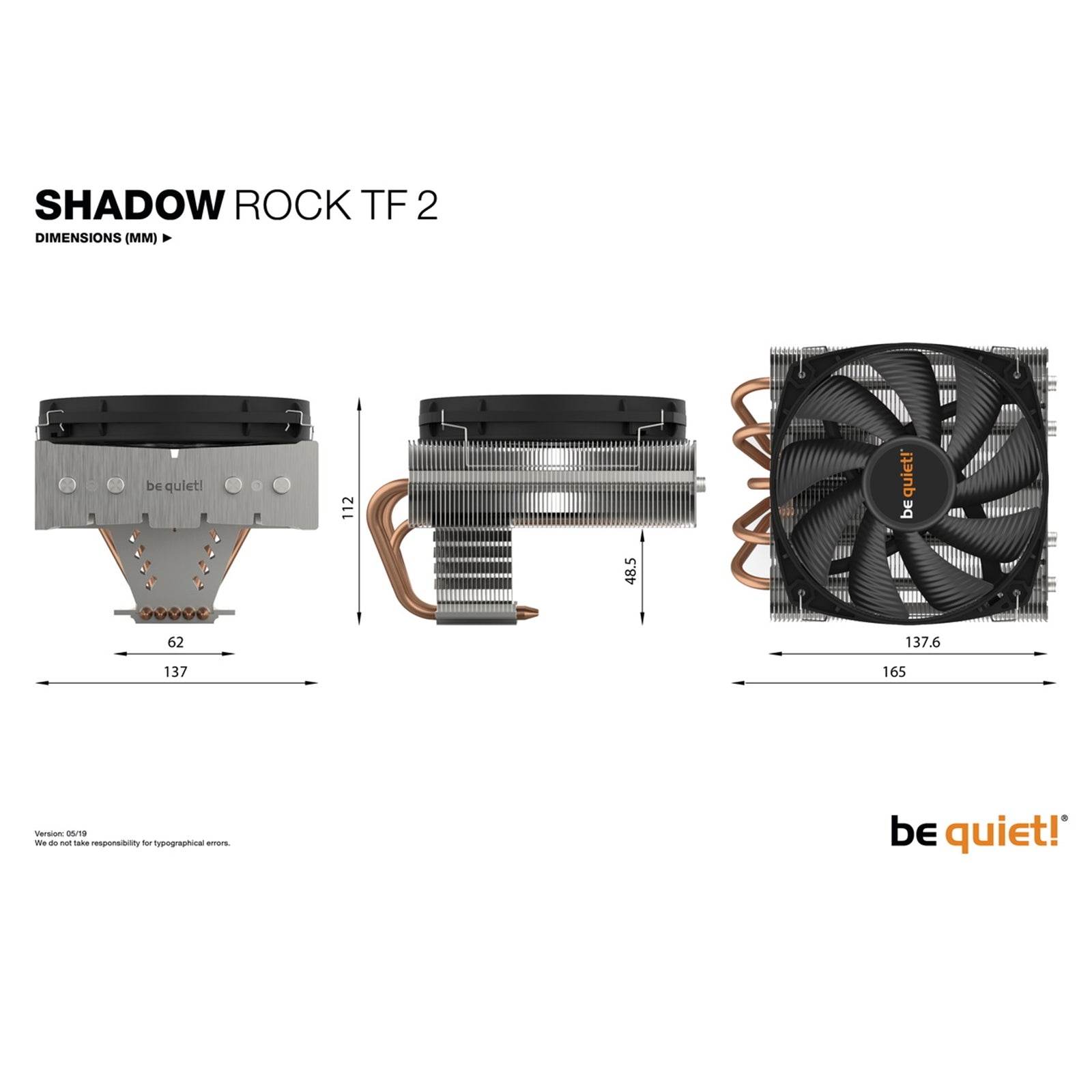

Dimensions (L x W x H), (mm): 137 x 165 x 112
Fin material: Aluminum
Surface treatment: Brushed
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 5 / 6
Fan Specifications
Fan model: silence-optimized be quiet! fan
Fan dimensions (mm): 135 x 135 x 22
Speed @ 100% PWM /12V (rpm): 1400
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.11
Input power (W): 1.32
Connector: 4-pin PWM
Lighting connector: -
Cable length (mm): 200
Lifespan (h / 25°C): 80,000
Accessories
Thermal grease (Type): Applied

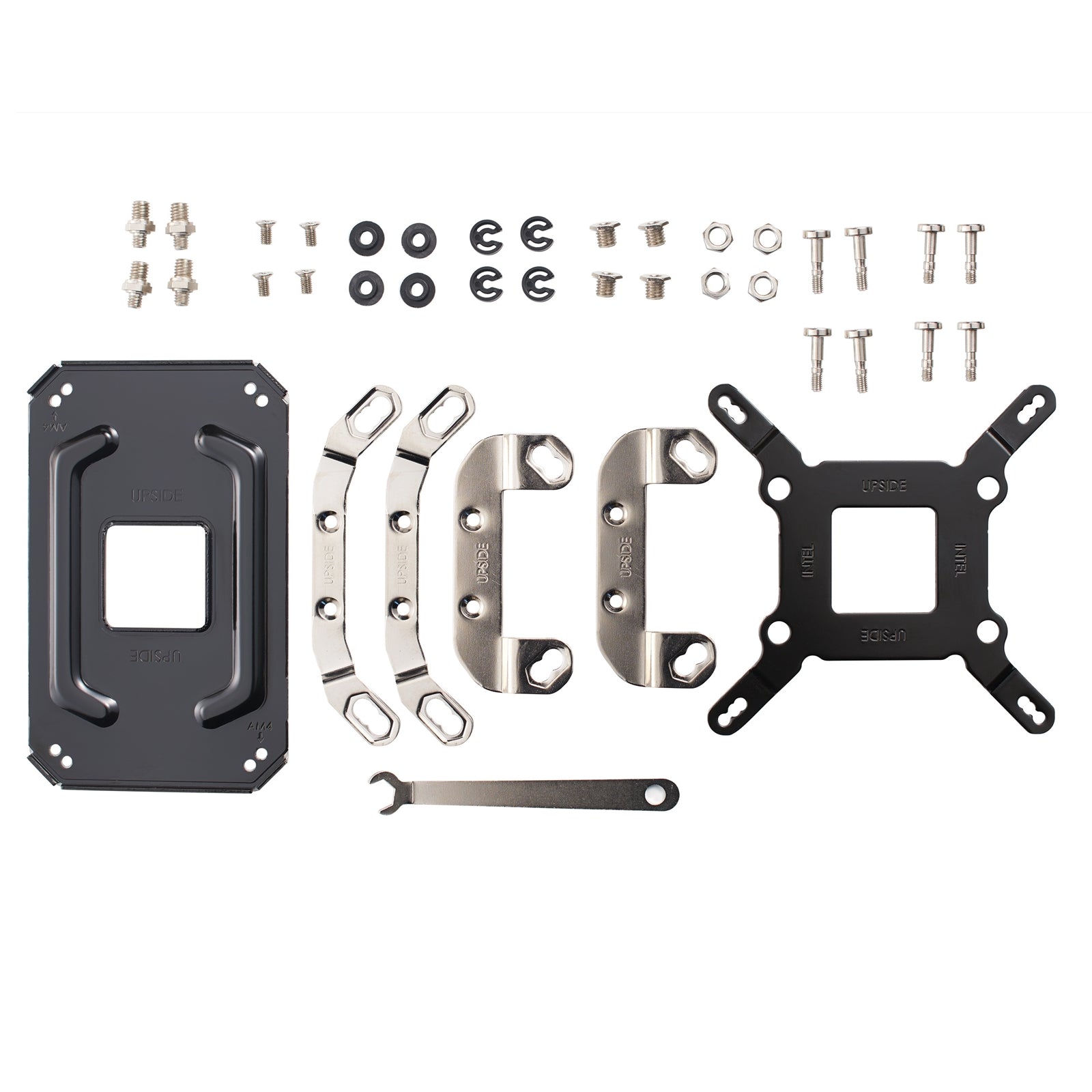

Mounting set: Intel & AMD
Y-Cable: -
User manual languages: DE, EN, ES, FR, PL, RU
Logistics Data
Dimensions, package (L x W x H), (mm): 203 x 178 x 130
Gross weight, package (kg): 1.09
