General Data
Model: Silent Loop 2 120mm

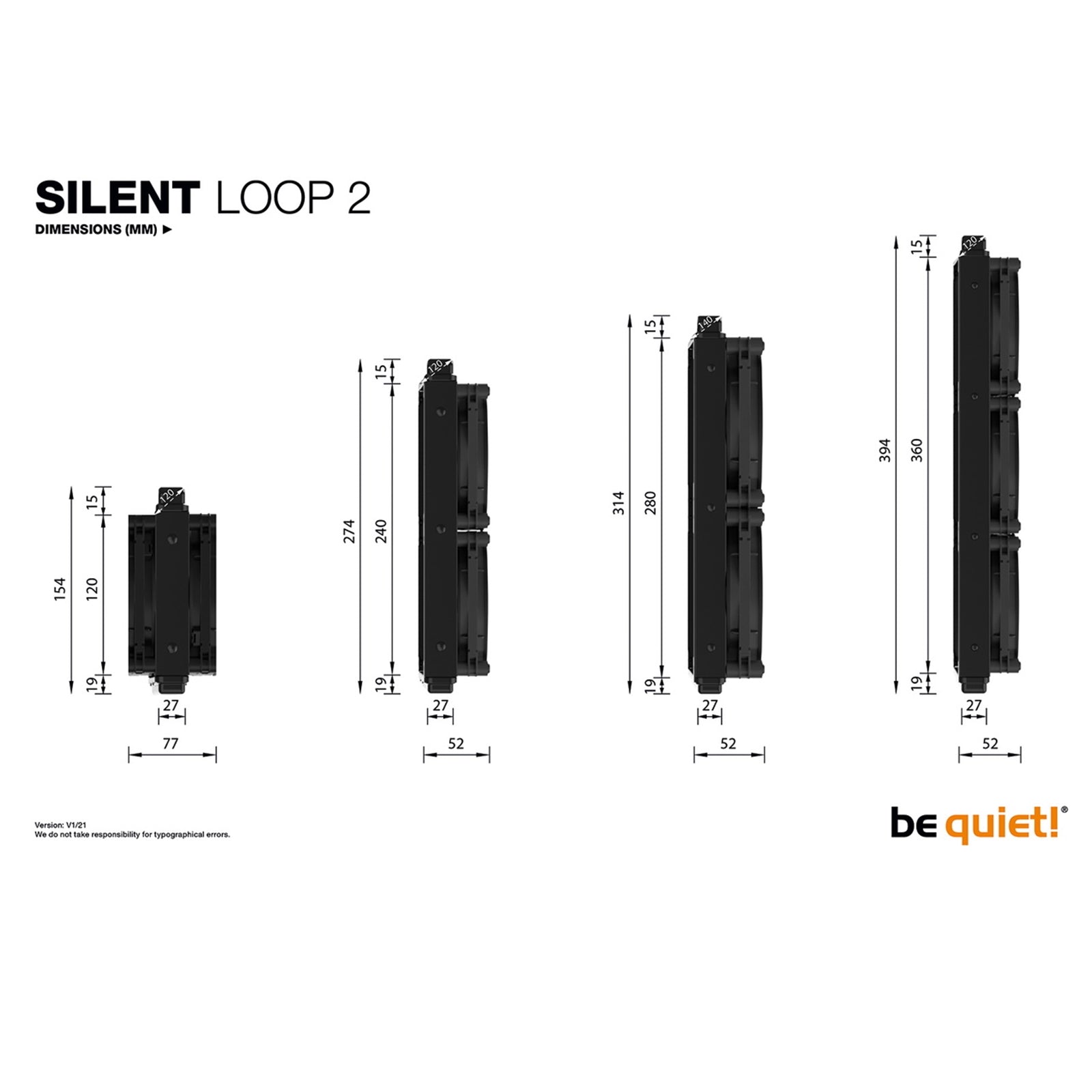

Dimensions radiator, incl. fan (H x W x D), (mm): 154 x 120 x 77
Dimensions Cooling block (H x W x D), (mm): -
Total weight (kg): 0.91
Socket compatibility Intel: 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4 / sTRX4,TR4(optional, mounting-kit (BZ008))
Noise level (dB(A)) @ 25 % / 50% /100% rpm: 16.6 / 19.4 / 36.4
Number of fans: -
Lighting Connector: 3-pin 5V Adressable
Tube length (mm): 400
Refill port: Yes
Pump Specifications
Pump speed (rpm): 2800
Pump adjustable: 9V - 12V
Pump connector: 3-pin

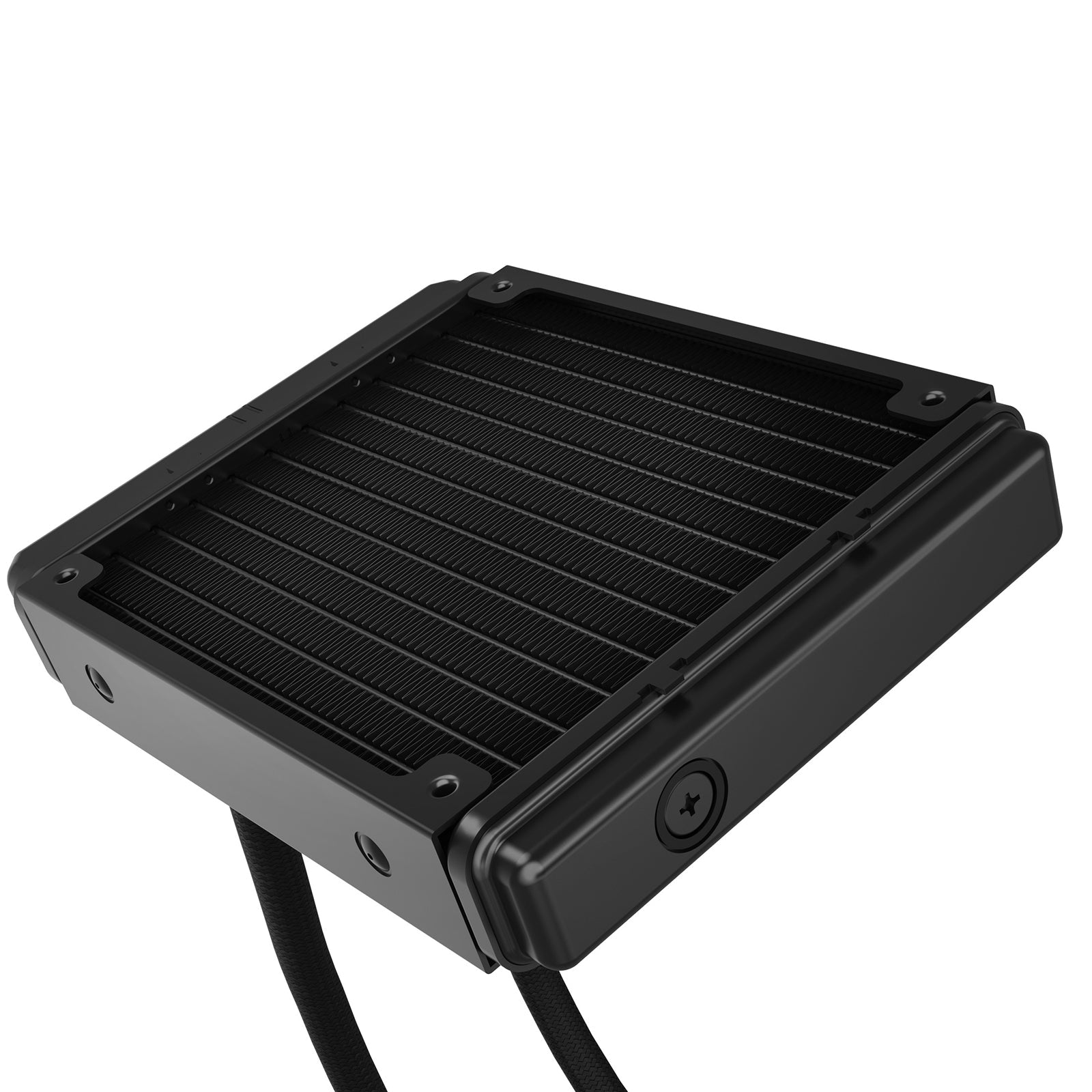

Radiator Specifications
Dimensions (H x W x D), (mm): 154 x 120 x 27
Radiator material / finish: Aluminum / Black spray painted
Base material / finish: Copper / Nickel plated

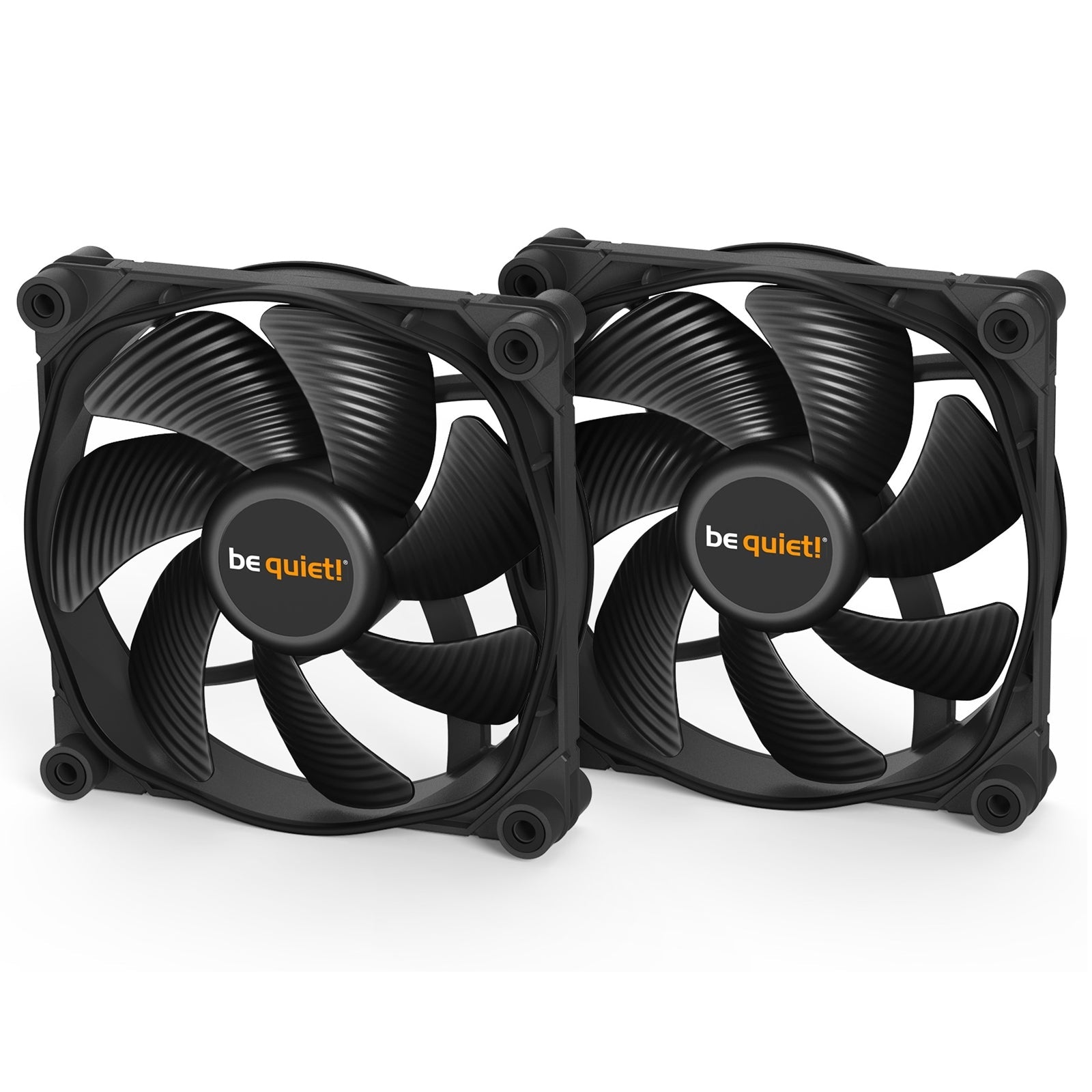

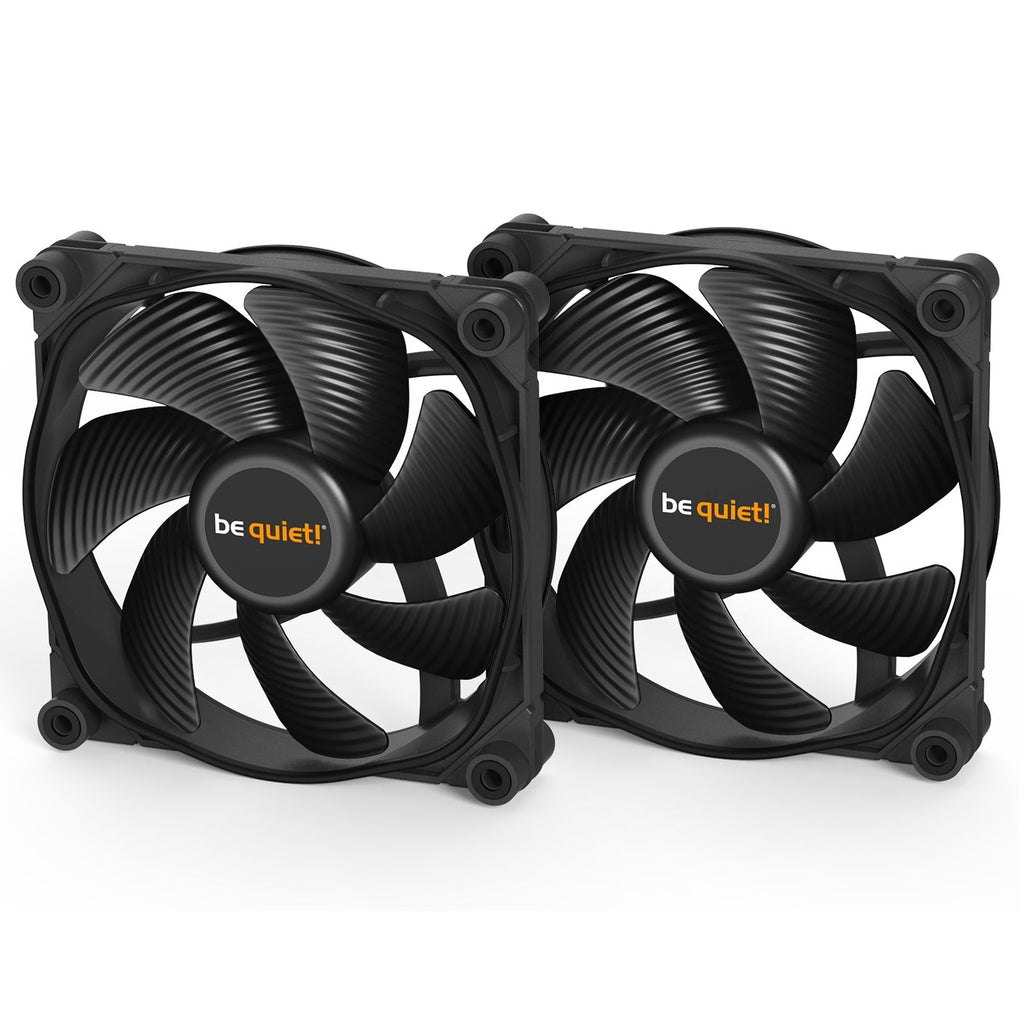

Fan Specifications
Fan model: 2x Silent Wings 3 120mm PWM high-speed
Fan dimensions (mm): 120 x 120 x 25
Speed @ 100% PWM (rpm): 2200
Bearing technology: FDB
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.37
Input power (W): 1.92
Connector: 4-pin PWM
Cable length (mm): 500
Lifespan (h / 25°C): 300,000

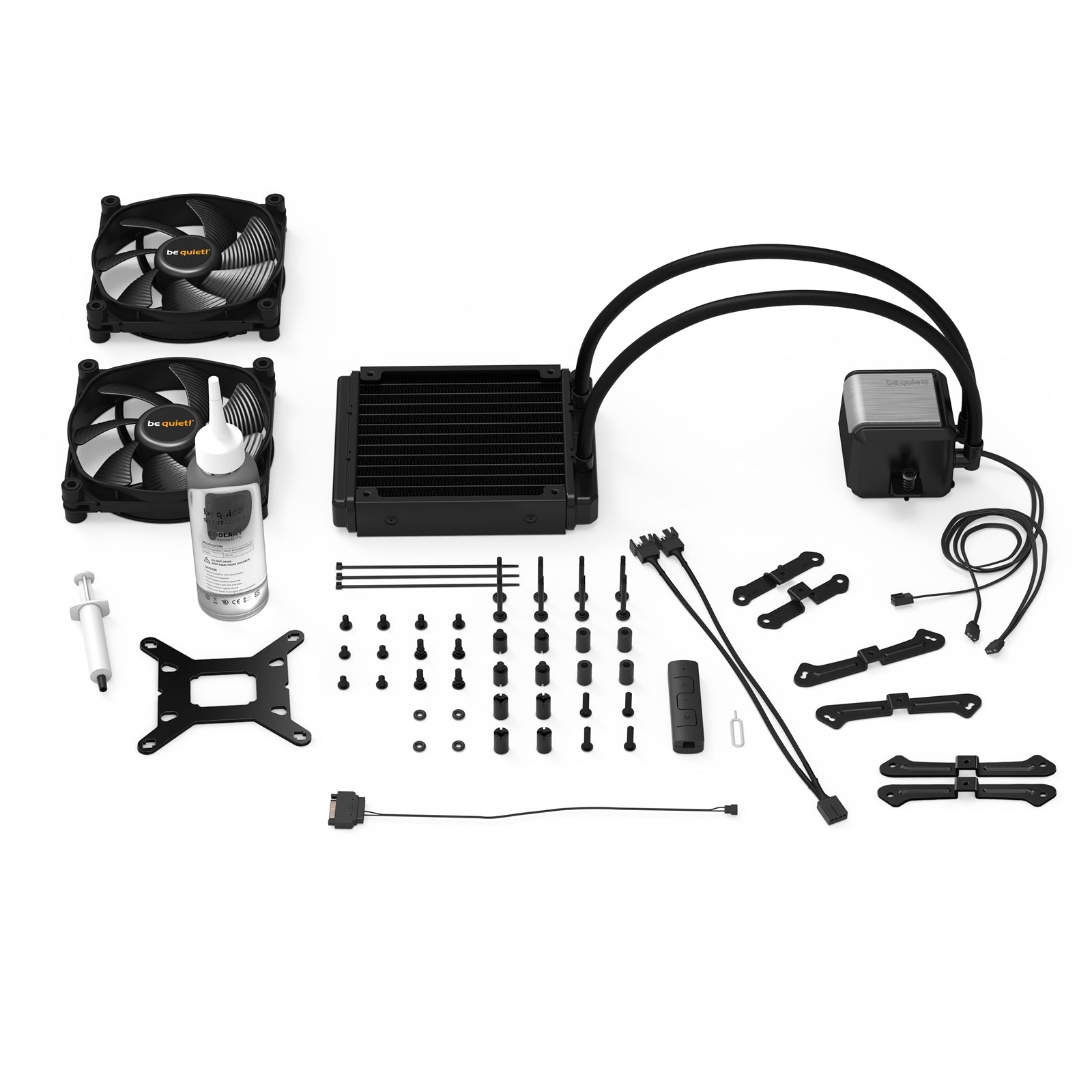

Accessories
Thermal grease (Type): Included
Mounting set: Intel & AMD(optional, mounting-kit(BZ008) for sTRX4 / TR4)
Adapter cables: -
Bottle of coolant (ml): Yes / 100
ARGB controller with SATA cable: Yes
SATA cable for ARGB controller: Yes
ARGB-PWM-Hub: -
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
Logistics Data
Article number: BW009
Dimensions, package (L x W x H), (mm): 307 x 217 x 137
Gross weight, package (kg): 1.66
