General Data

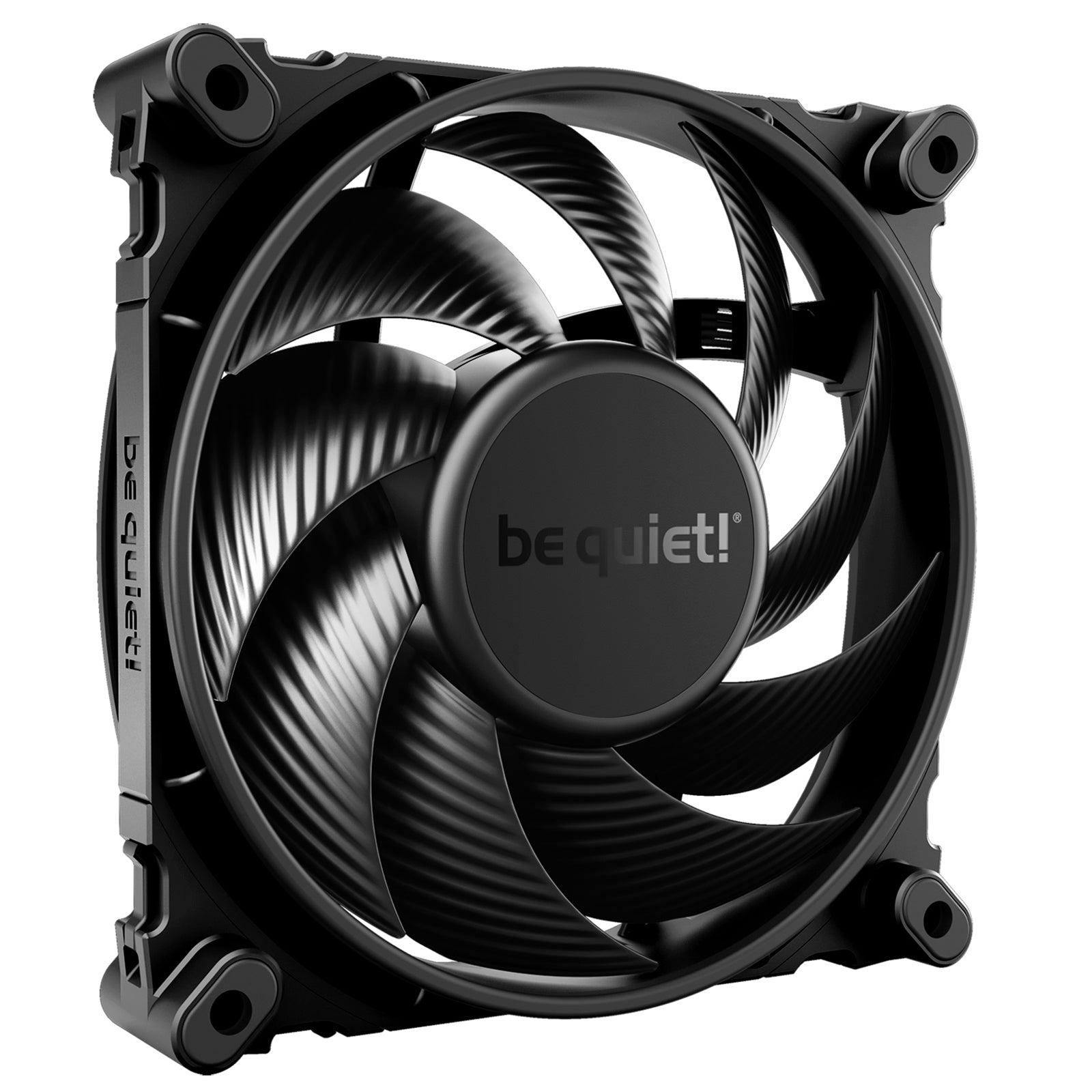

Model: Silent Wings 4 PWM
Dimensions (mm): 120 or 140
Color option: Black
Lighting: -
Fan speed @ 100% PWM / 12V (rpm): 1600 (120mm) | 1900 (140mm)
Noise level @ 100% PWM / 12V (dB(A)): 18.9
Air Flow @ 100% PWM / 12V (CFM / m3/h): 48.7 / 82.74
Air Pressure @ 100% PWM / 12V (mm H2O): 1.79
Mechanical Specifications

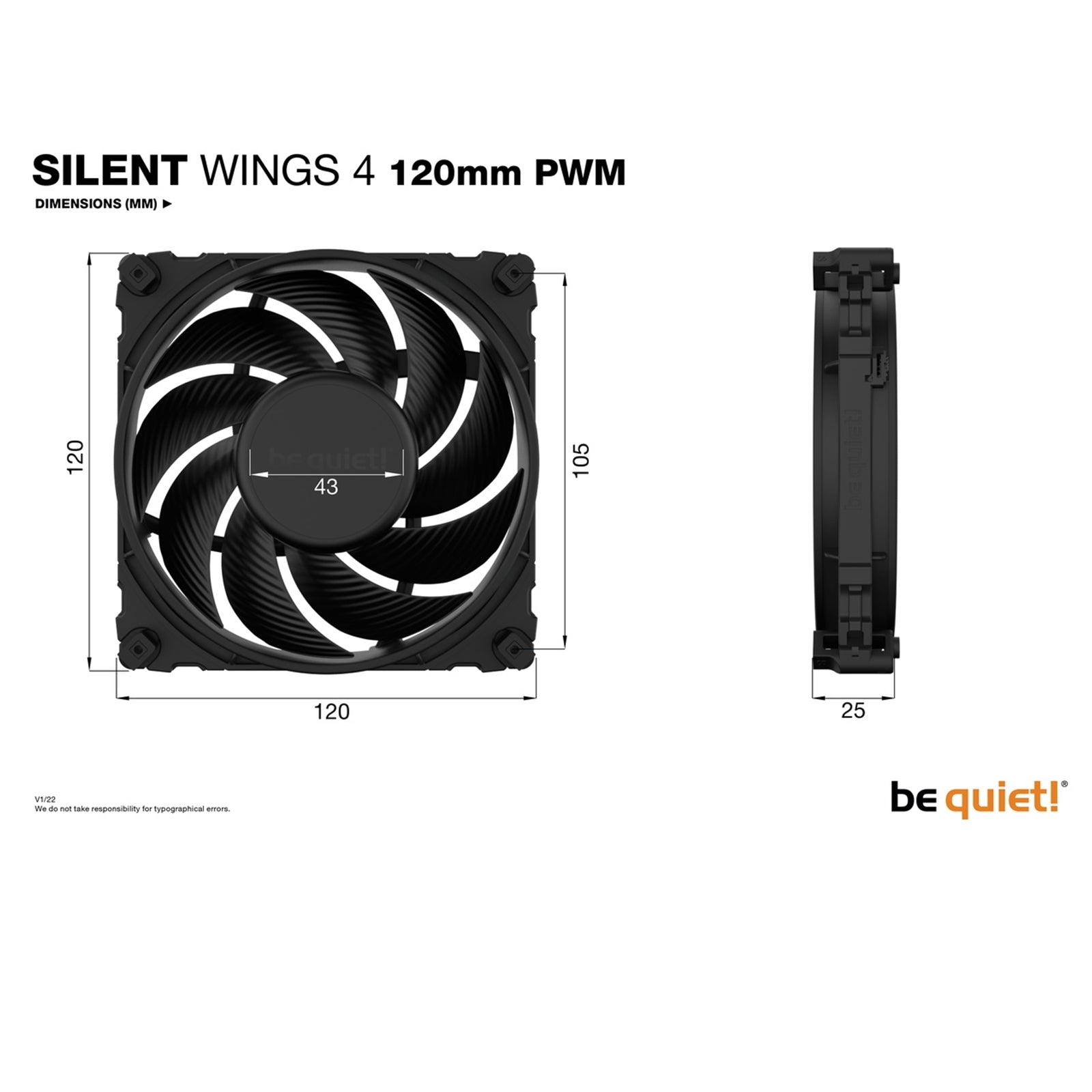

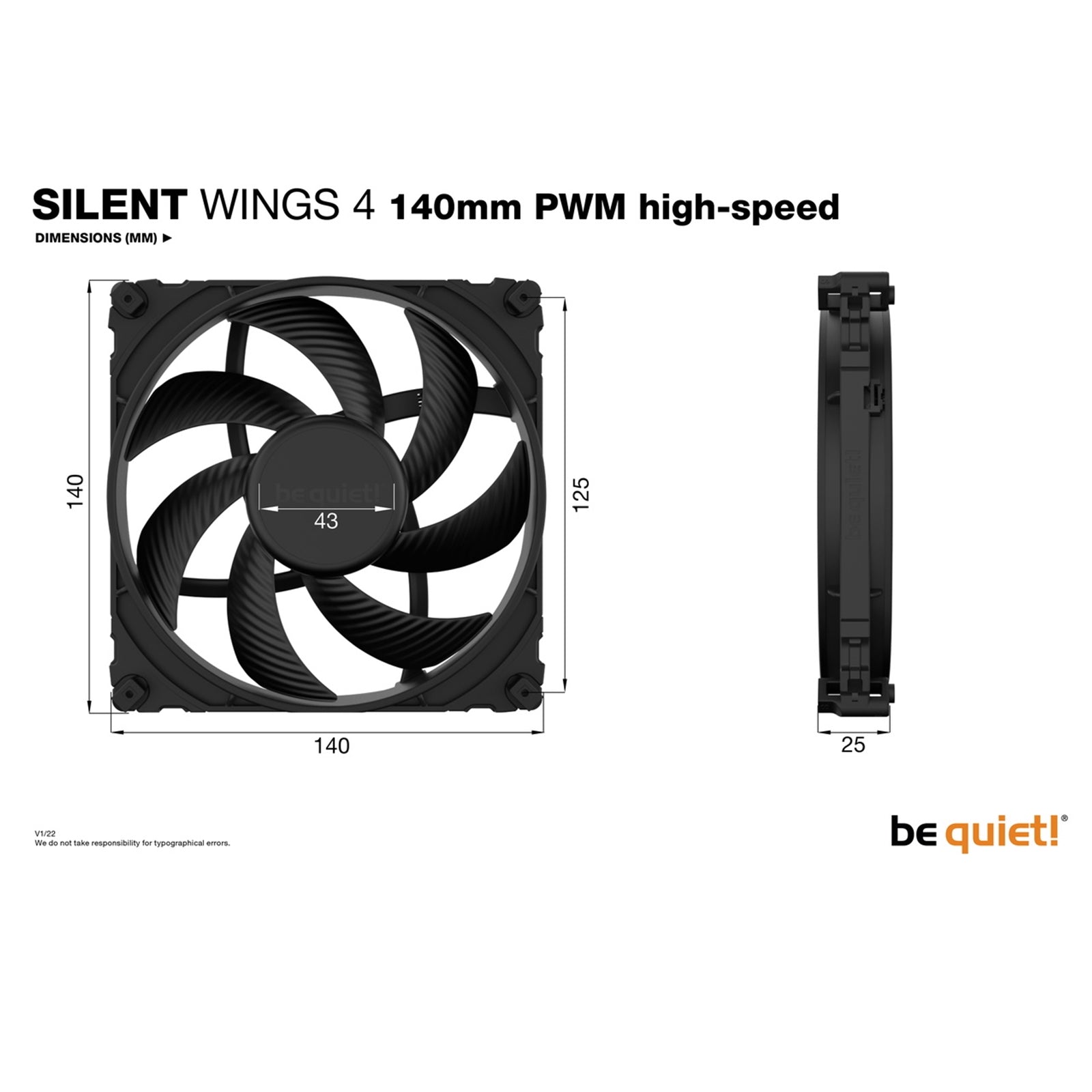

Dimensions (L x W x H), (mm): 120/140 x 120/140 x 25
Weight incl. fixed cables (g): 190
Bearing technology: FDB
Motor technology: 6-pole fan motor
Push pin fixing: Yes
Screw fixing: Yes
Cables / Connectors
Daisy chain for lighting signal: -
Lighting connector: -
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: Yes
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 48.7 / 82.74
Air Pressure @ 100% PWM / 12V (mm H2O): 1.79
Noise level @ 100% PWM / 12V (dB(A)): 18.9
Lifespan (h / 25°C): 300,000
Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.12
Safety current (A): 0.13
Input power (W): 1.44
Rated Current LED (A): -

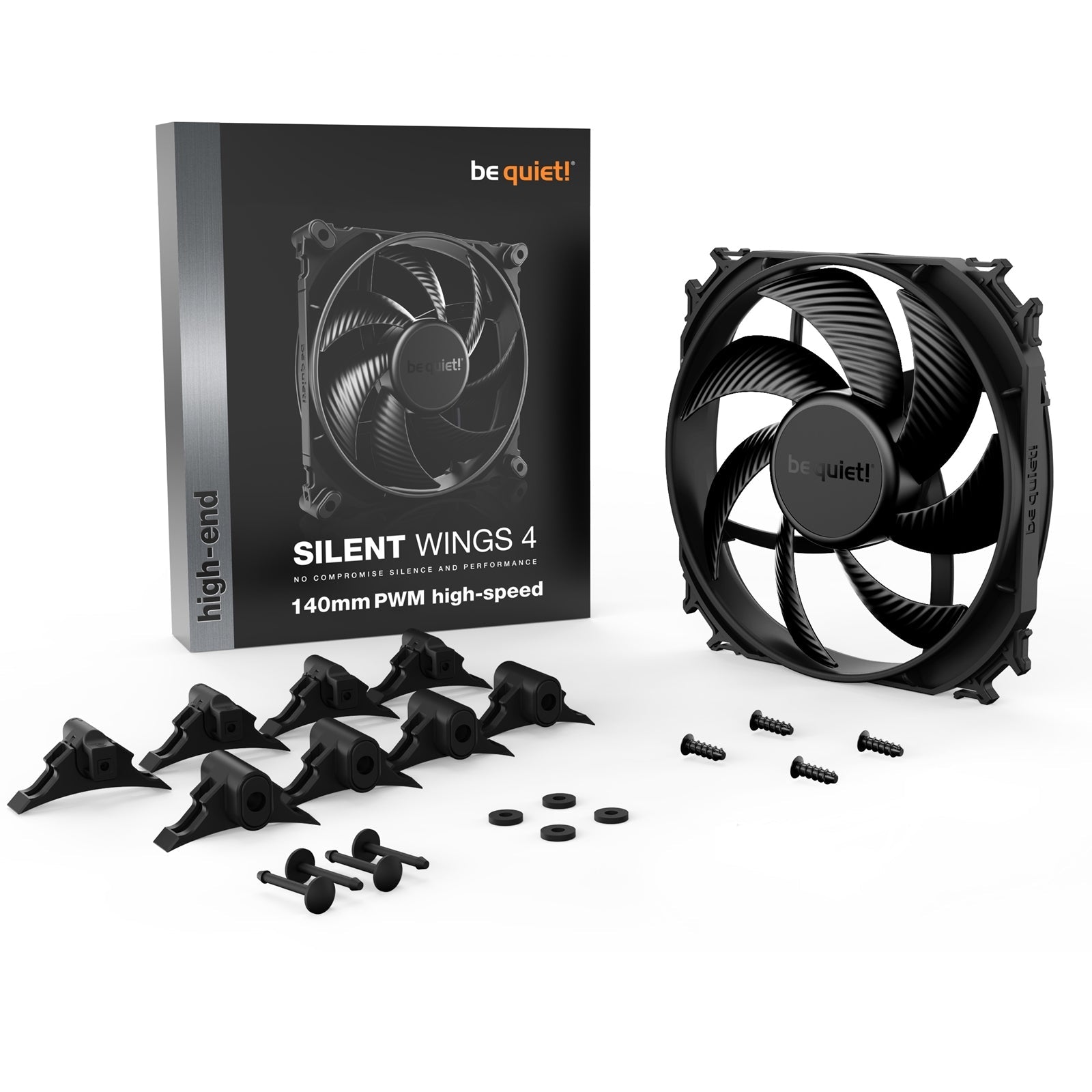

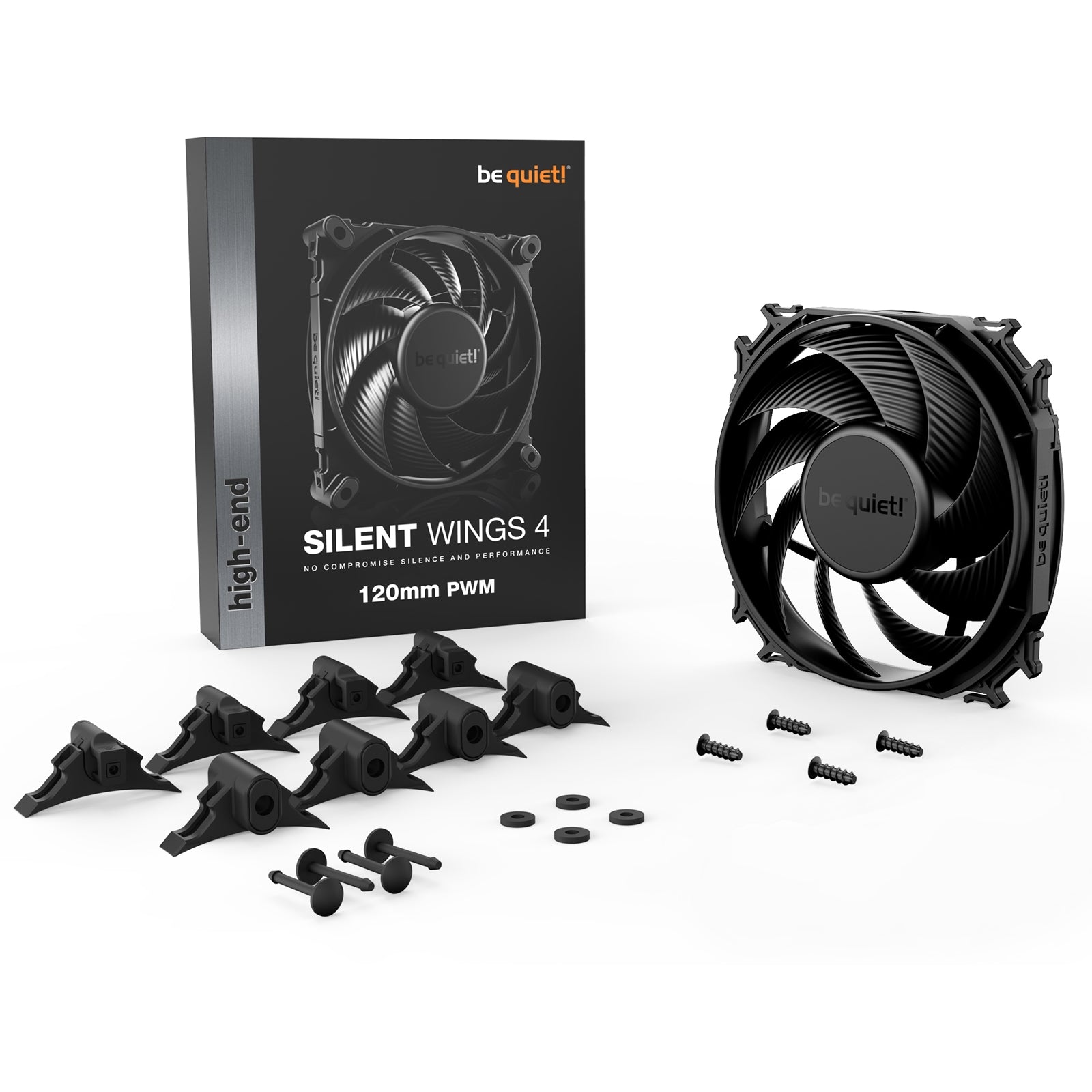

Accessories
3-pin to 4-pin 12V-connector: -
12V to 7V adapter: -
12V to 5V adapter: -
Screws: 4
Push pins: 4
hard plastic washer: -
Others: Rubber & hard plastic mountings
Safety Certification
Approvals: CE / RoHs / RU / UKCA / T�V / WEEE
Environmental Directives
RoHs: -
Triman: -
Logistics Data
Article number: BL093
Dimensions, package (L x W x H), (mm): 192 x 141 x 31
Gross weight, package (kg): 0.343
