Fan Dimensions (L x W x H)
120 x 120 x 27 mm / 4.7 x 4.7 x 1.06 inch
Fan Profiles
Non-LED

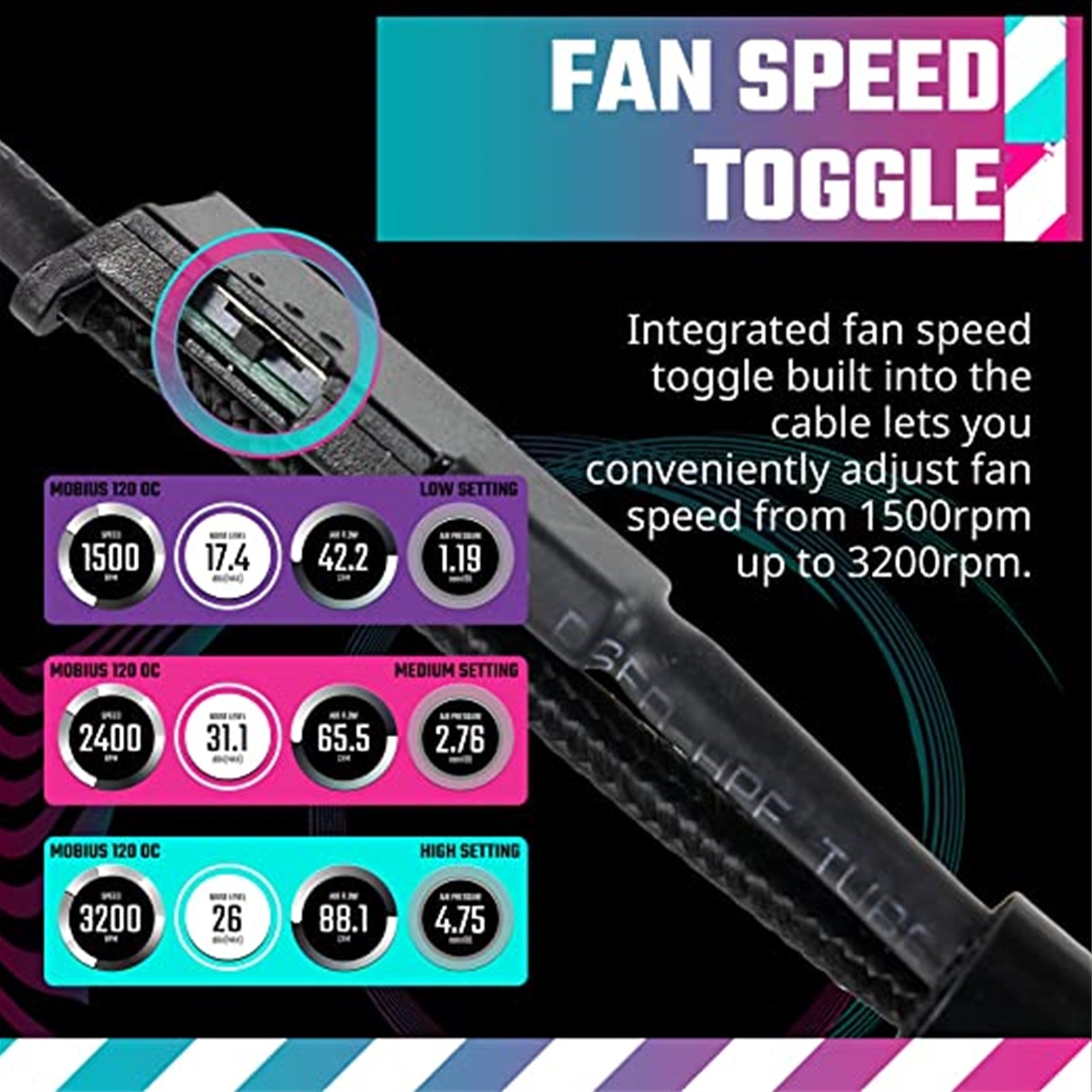

Fan Speed
L: 0-1500 ± 200 RPM, M: 0-2400 ± 250 RPM, H: 0-3200 ± 10% RPM
Fan Airflow
L: 42.2 CFM, M: 65.5 CFM, H: 88.1 CFM
Fan Noise Level
L: 17.4 dBA, M: 31.1 dBA, H: 39.3 dBA

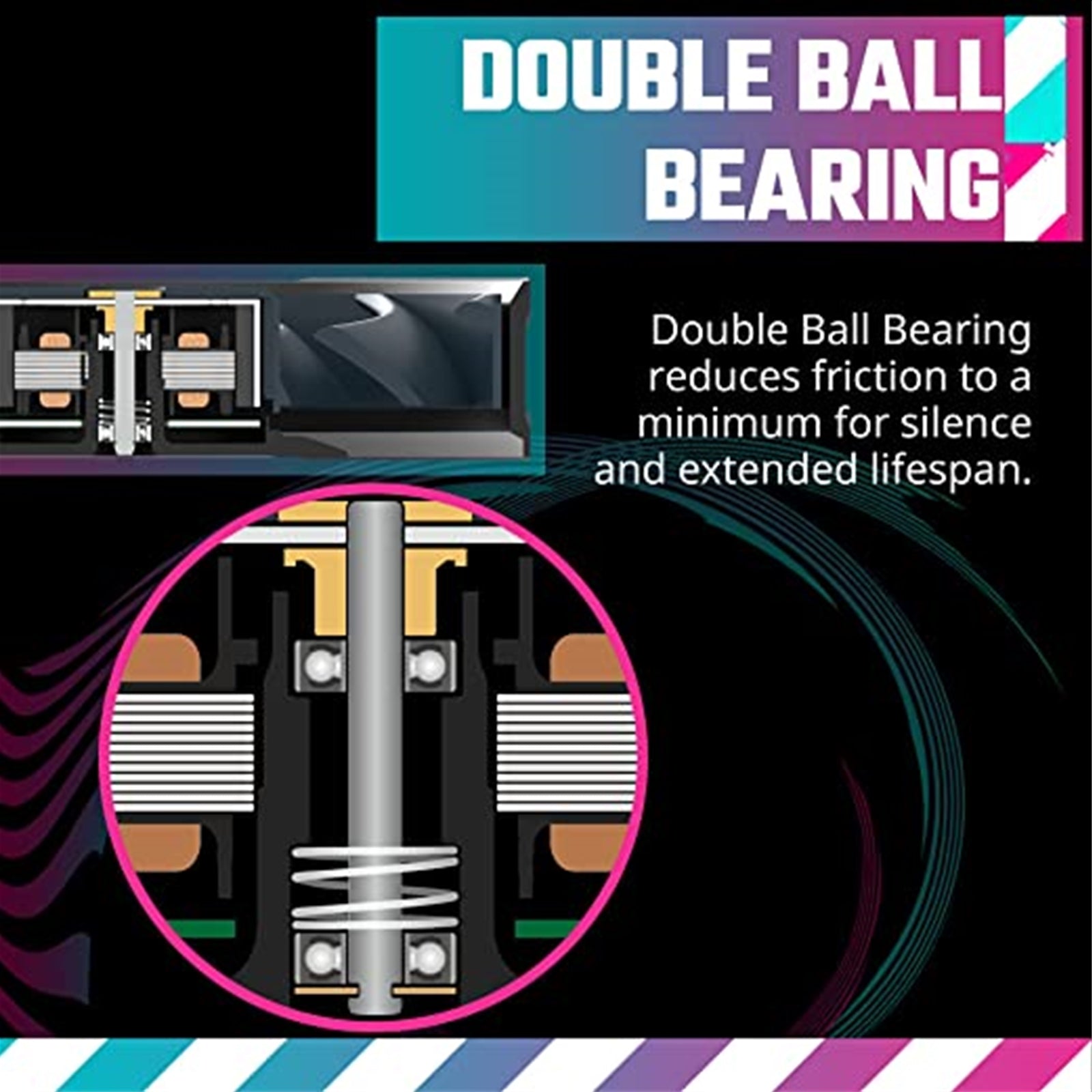

Fan Bearing Type
Two Ball Bearing

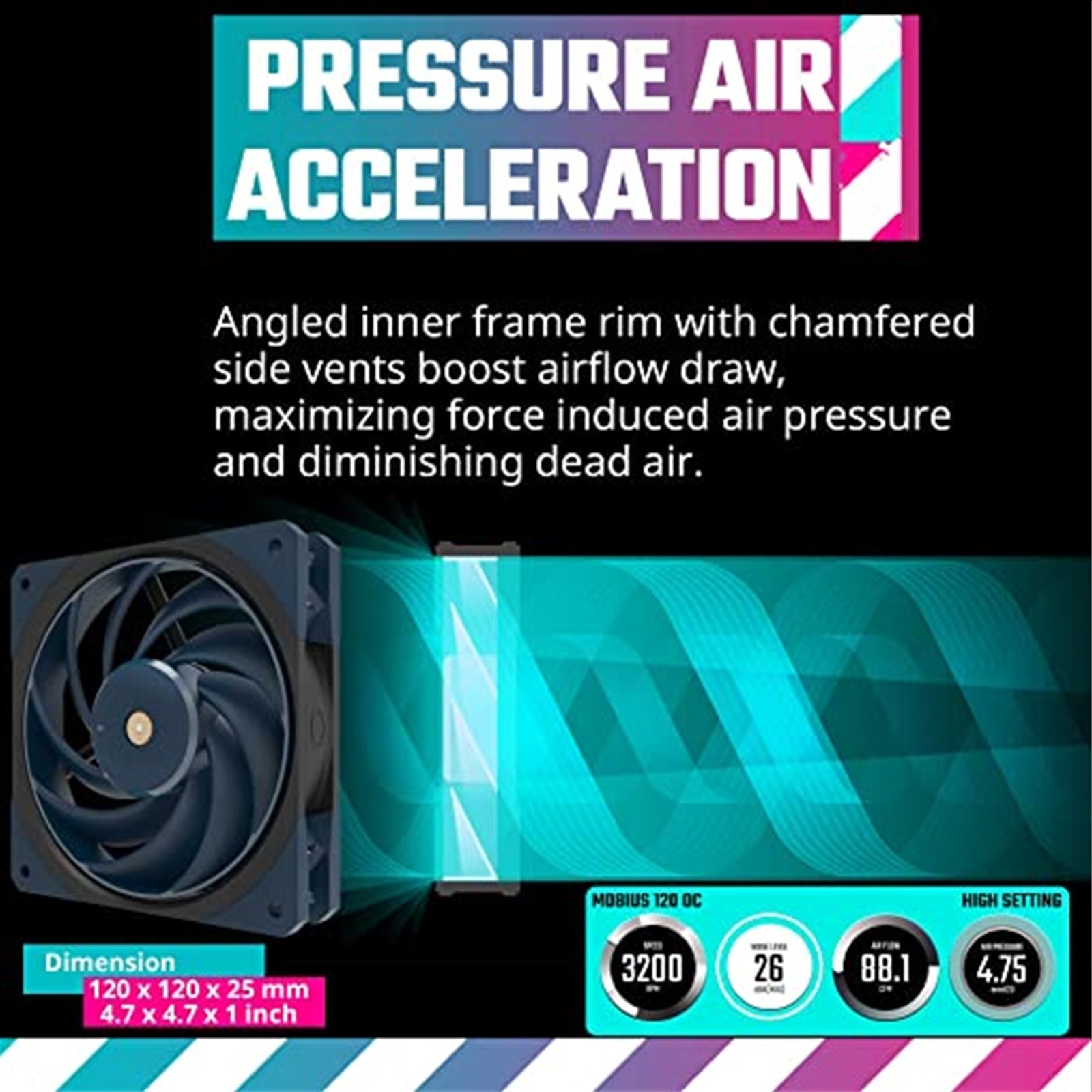

Fan Pressure
L: 1.19 mmH2O, M: 2.76 mmH2O, H: 4.75 mmH2O
Fan MTTF
>200,000 Hours
Fan Connector
4-Pin PWM (with speed control line)
Fan Rated Voltage
12 VDC
Fan Rated Current
L: 0.10A, M: 0.20A, H: 0.35A
Fan Safety Current
0.5A
Fan Power Consumption
L: 1.20W, M: 2.40W, H: 4.20W
Fan Weight
214g
Series
Mobius Series
Cooler Type
Case Fan
