Specifications
Net Weight
1786g
Radiator Dimensions
402 x 120 x 27 mm (L x W x H)
Radiator Material
Aluminum

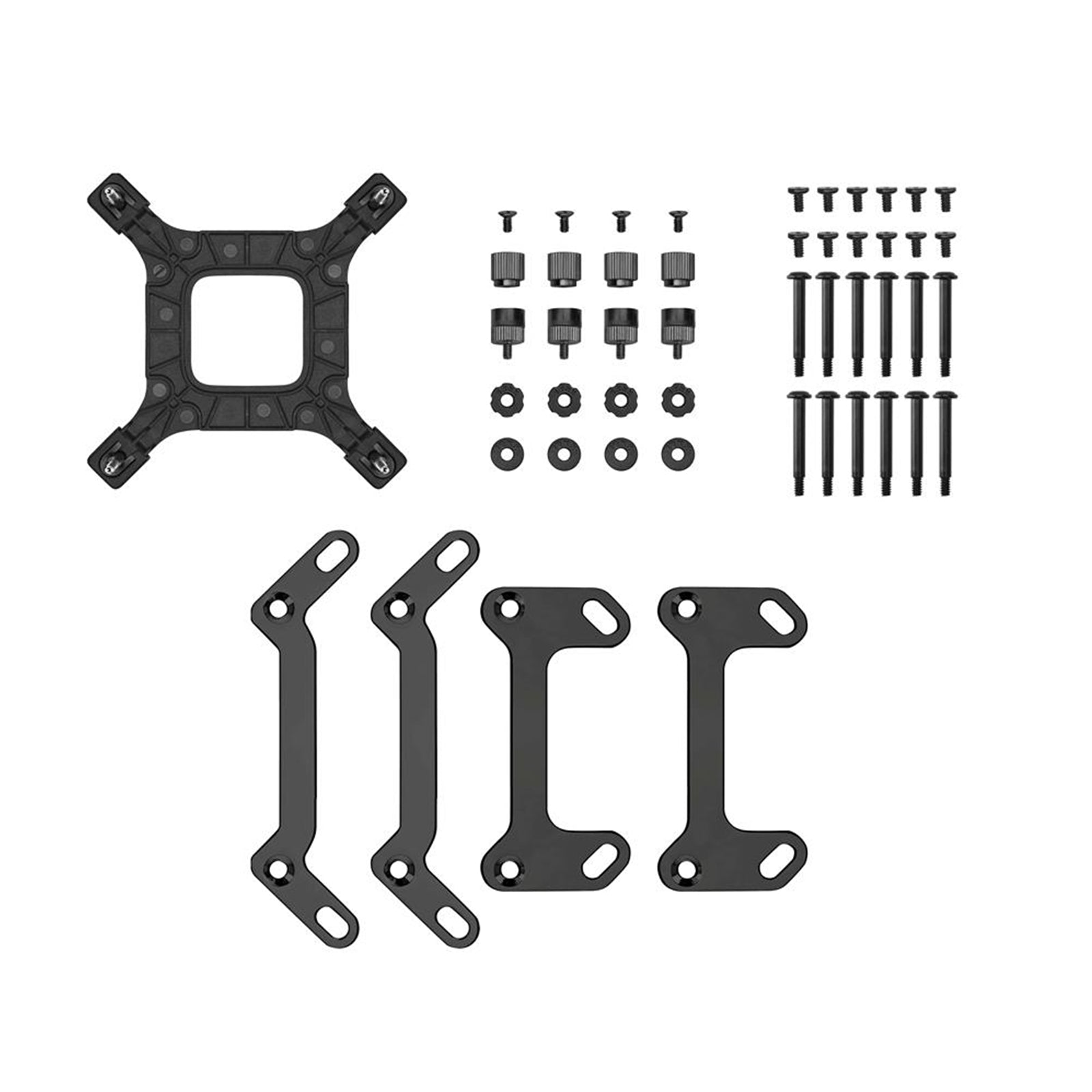

Socket Support
Intel: 1150/1151/1155/1200/1700
AMD: AM4/AM5
ube length
410 mm

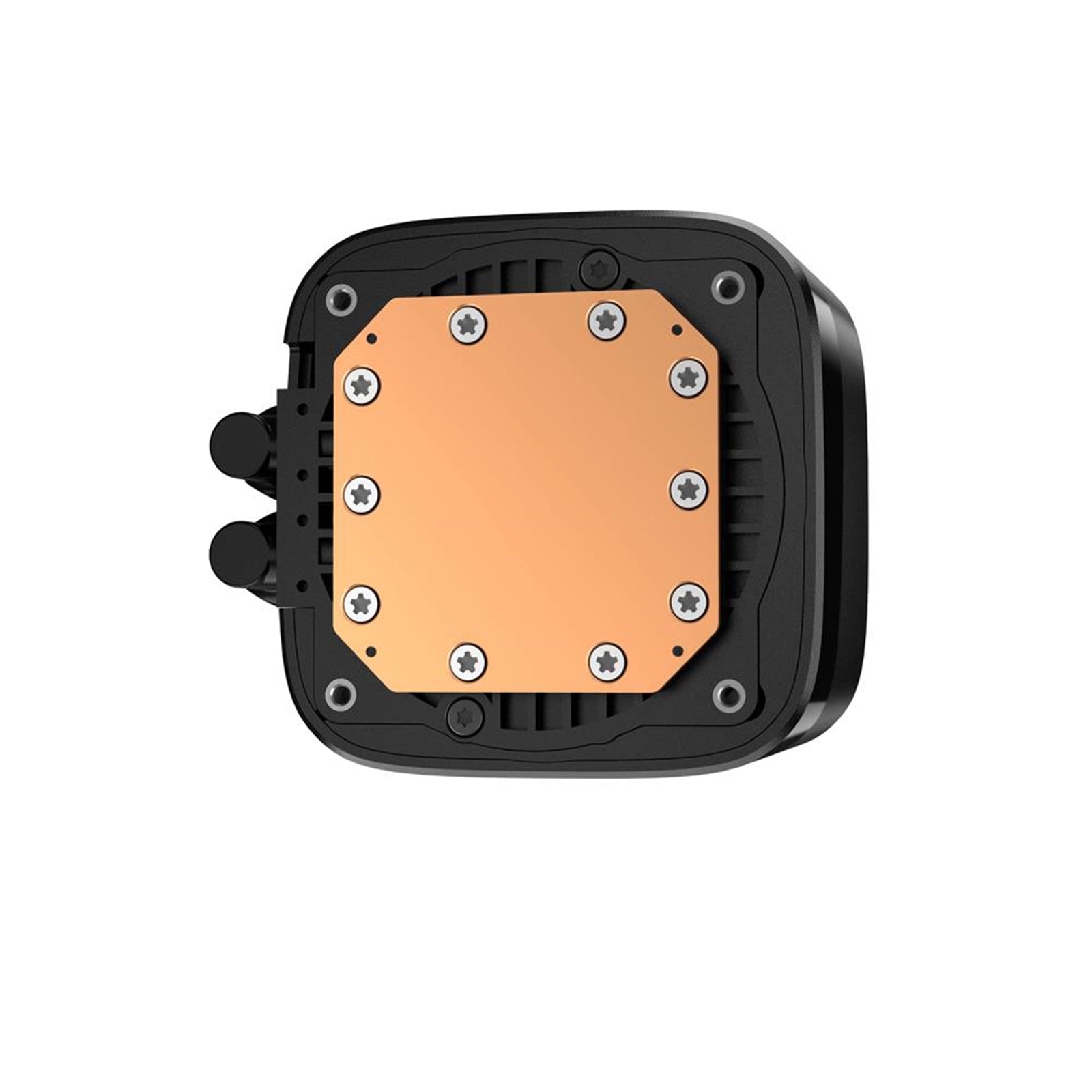

Pump Dimensions
89 x 78 x 53 mm (L x W x H)
Pump Speed
3400 RPM±10%
Pump Noise
21 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.35 A
Pump Power Consumption
4.2 W
Fan Dimensions
120 x 120 x 25 mm (L x W x H)
Fan Speed
600~2400 RPM±10%
Fan Airflow
72.04 CFM
Fan Air Pressure
3.48 mmAq
Fan Noise
=38.71 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.22 A
Fan Power Consumption
2.64 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.55 W(PUMP)/ 3.15 W(FAN x 3)
Display Type
LED Digital Display
