Specifications
Net Weight
1346 g

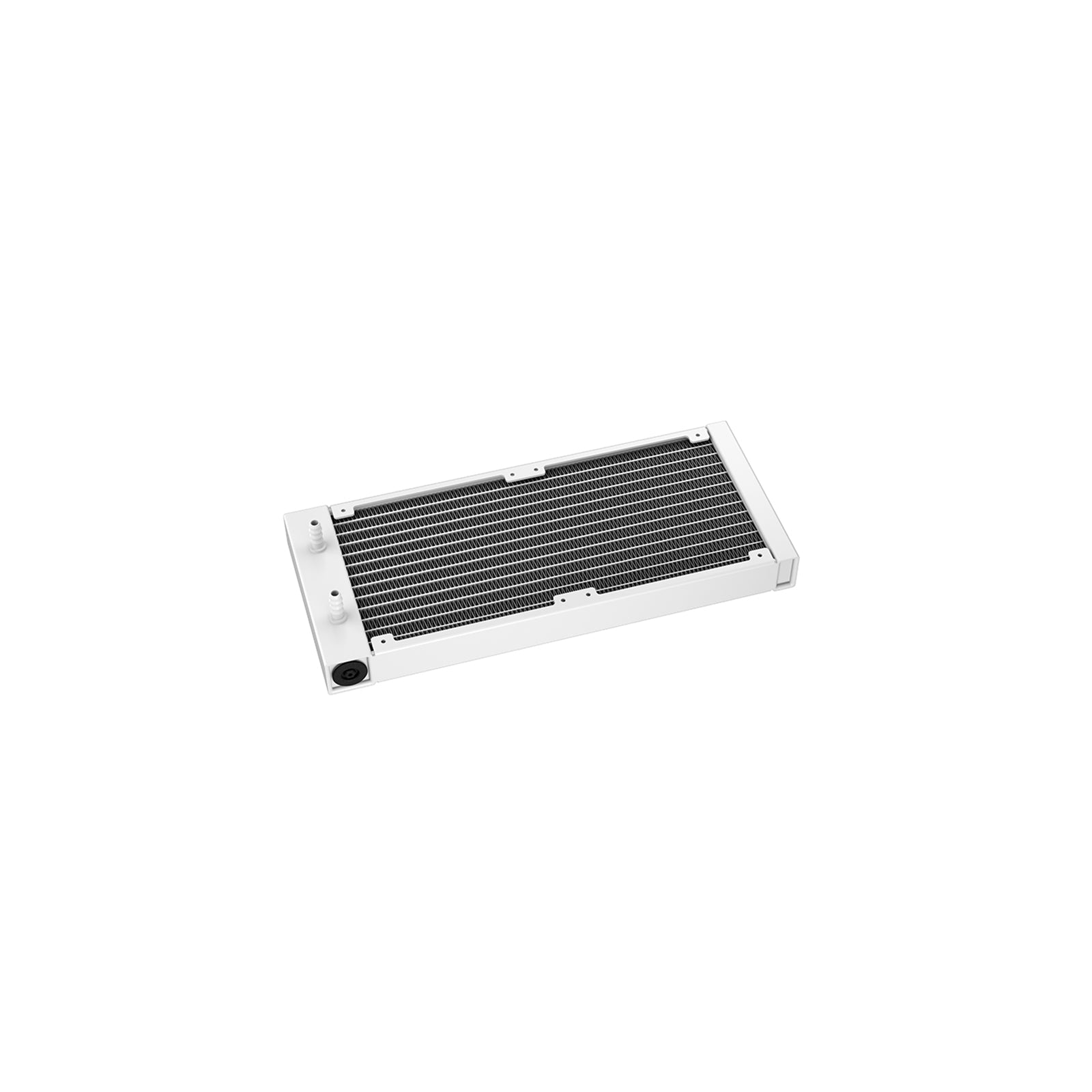

Radiator Dimensions
282 x 120 x 27 mm(L x W x H)
Radiator Material
Aluminum
Tube length
410 mm(L x W x H)

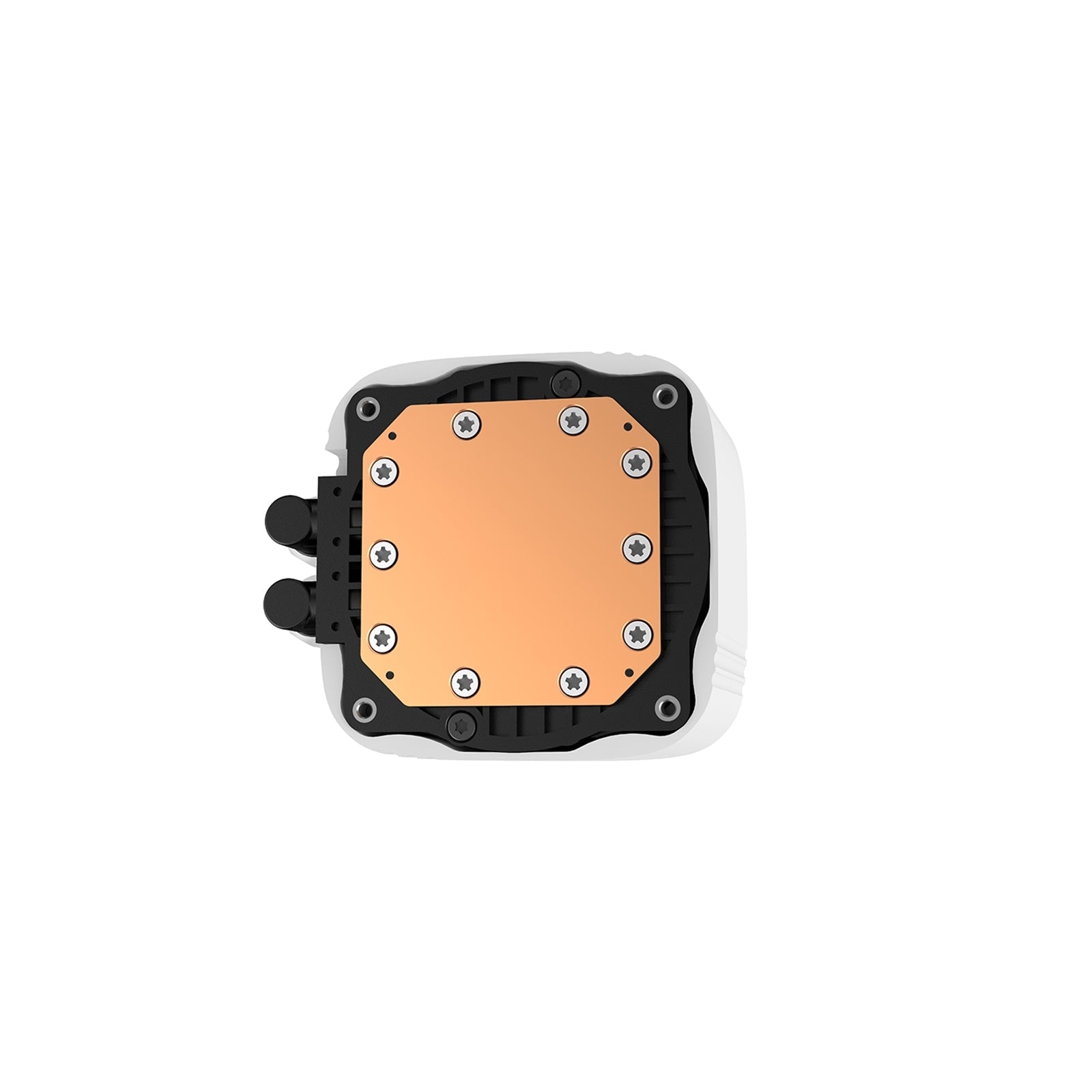

Pump Dimensions
85 x 73 x 55 mm(L x W x H)
Pump Speed
3100 RPM + 10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.38 A
Pump Power Consumption
4.56 W

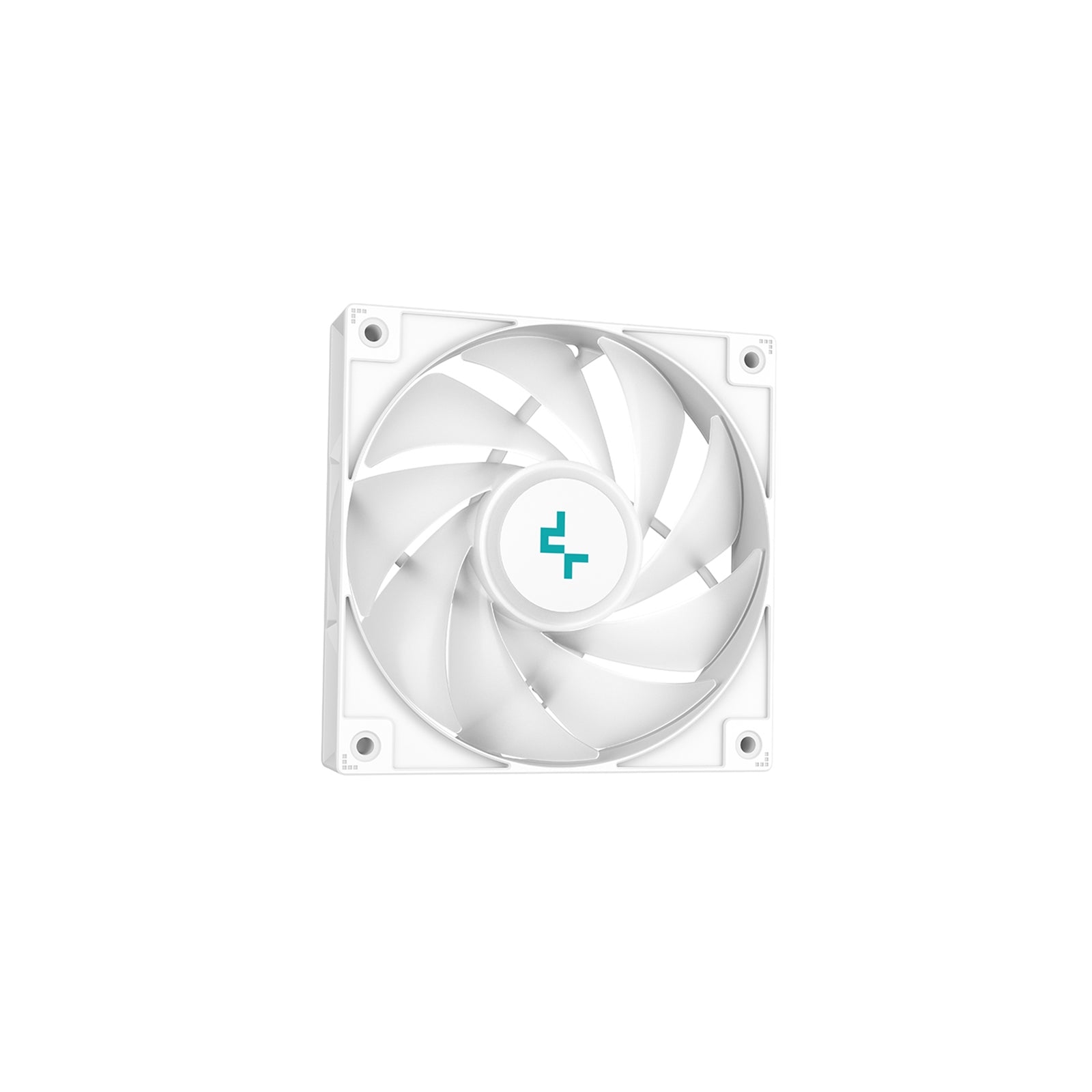

Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500 - 250 RPM + 10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
<32.9 dB(A)
Fan Speed (with LSP)
500 - 1600 RPM + 10%
Fan Airflow (with LSP)
60.85 CFM
Fan Air Pressure (with LSP)
1.65 mmAq
Fan Noise (with LSP)
<28.2 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.25 A
Fan Power Consumption
3.0 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.7 W(PUMP)/ 2.1 W(FAN x 2)
