Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4
Net Weight
1856 g

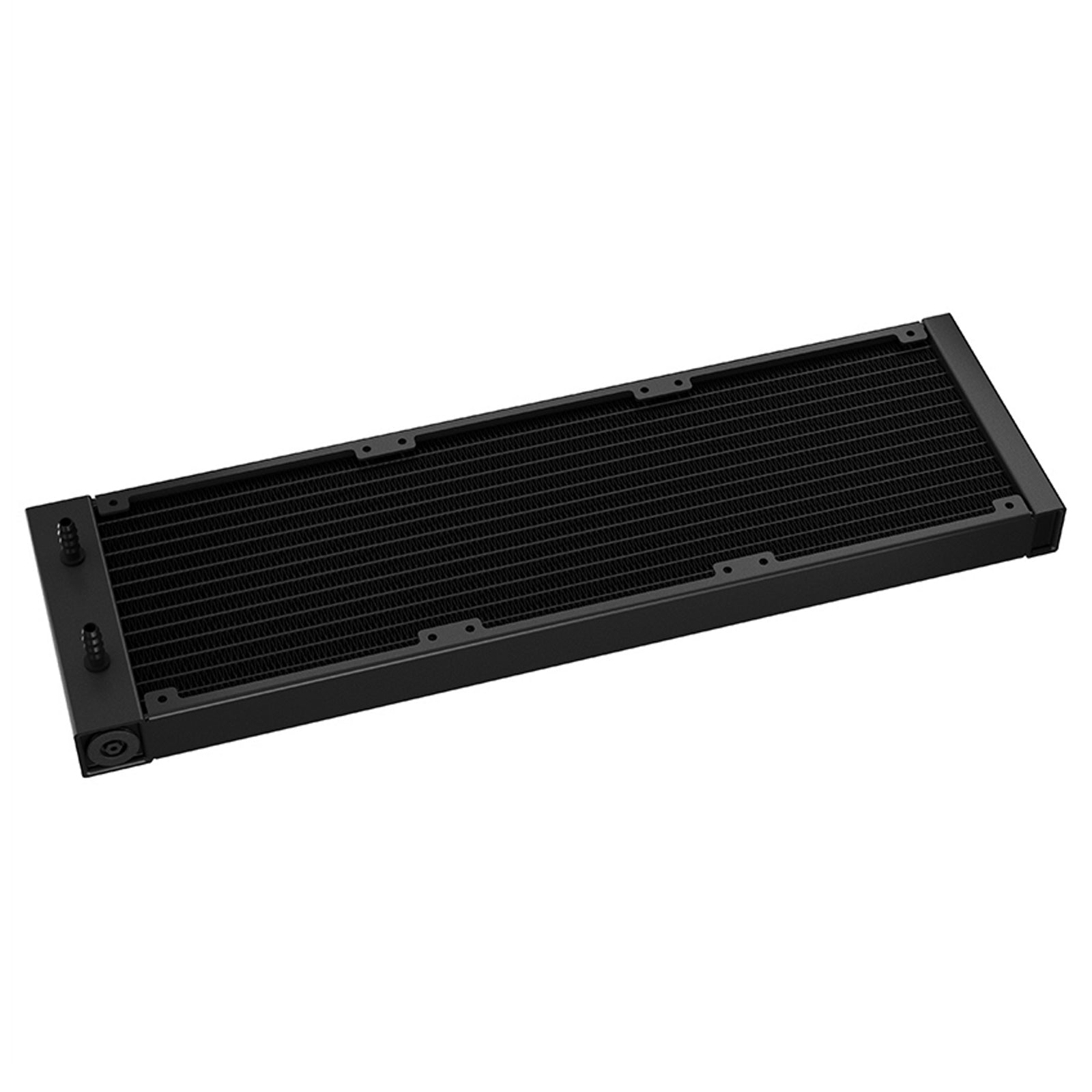

Radiator Dimensions
402 x 120 x 27 mm
Radiator Material
Aluminum
Tube length
410 mm

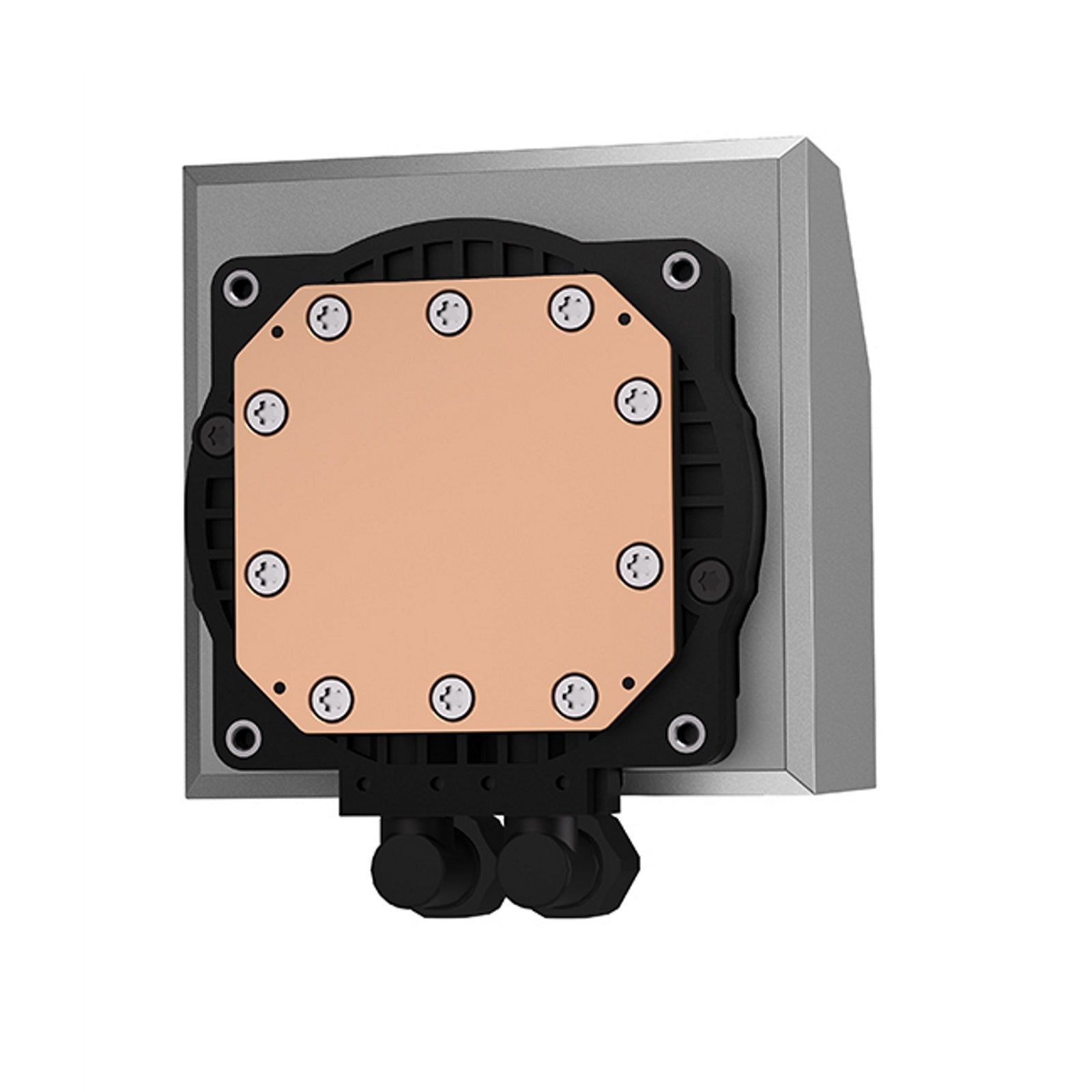

Pump Dimensions
94 x 80 x 68 mm
Pump Speed
3100 RPM±10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.38 A
Pump Power Consumption
4.56 W

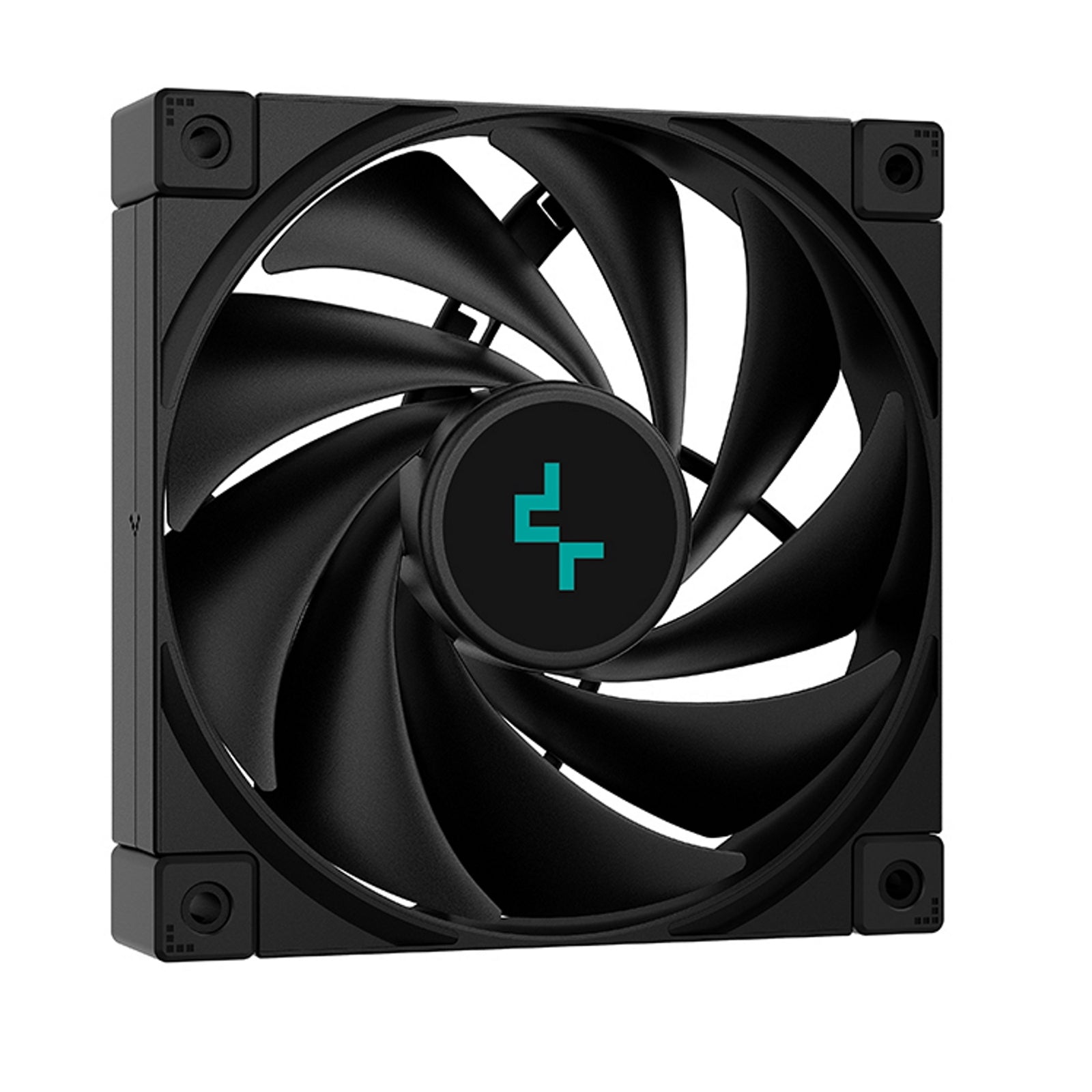

Fan Dimensions
120 x 120 x 25 mm
Fan Speed
500~2250 RPM±10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
=32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.22 A
Fan Power Consumption
2.64 W
LED Type
Addressable RGB LED
LED Connector
3-pin (+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
3.15 W (PUMP)
