Specification
Application
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4

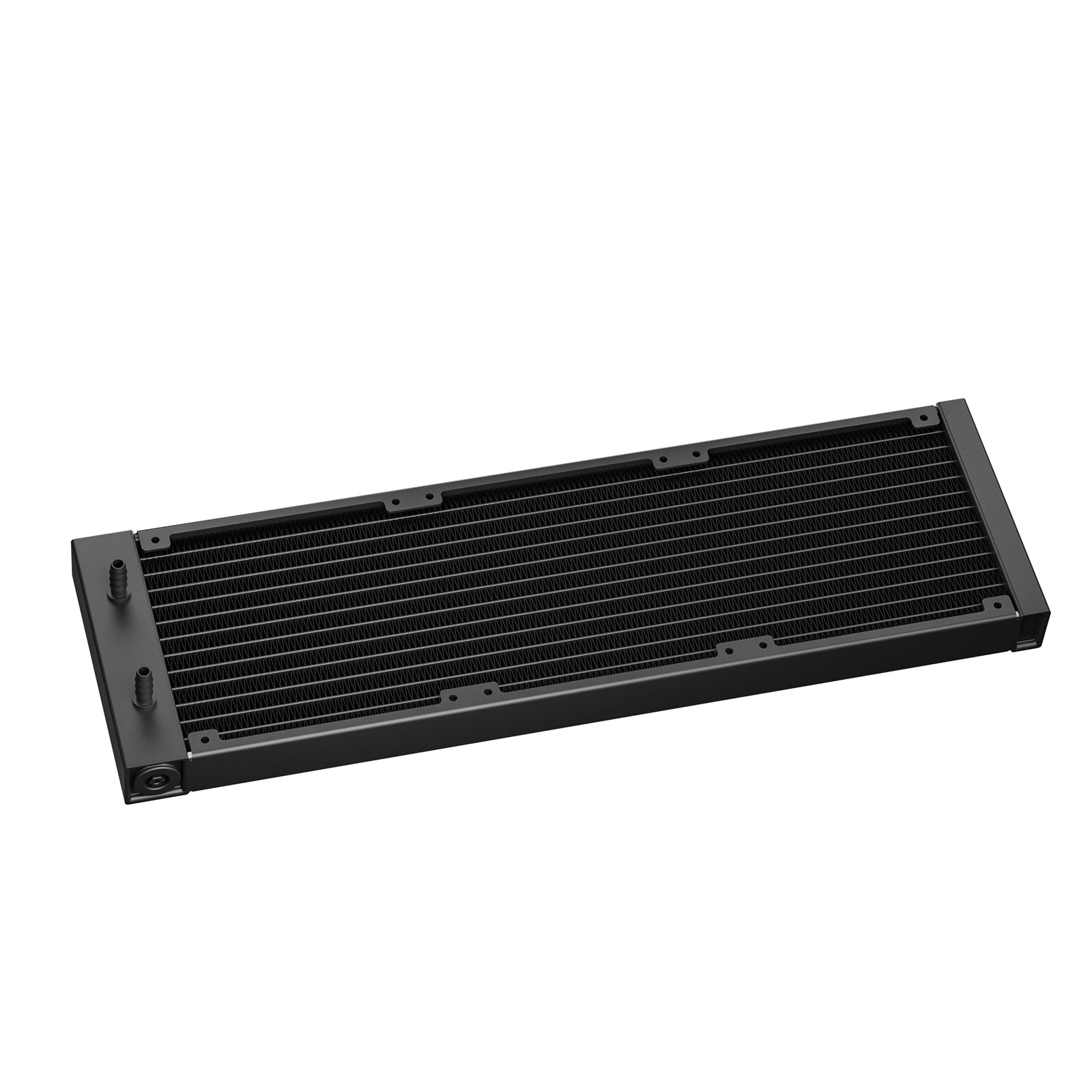

Radiator Dimensions
402 x 120 x 27 mm (L x W x H)
Radiator Material
Aluminum
Tube length
410 mm

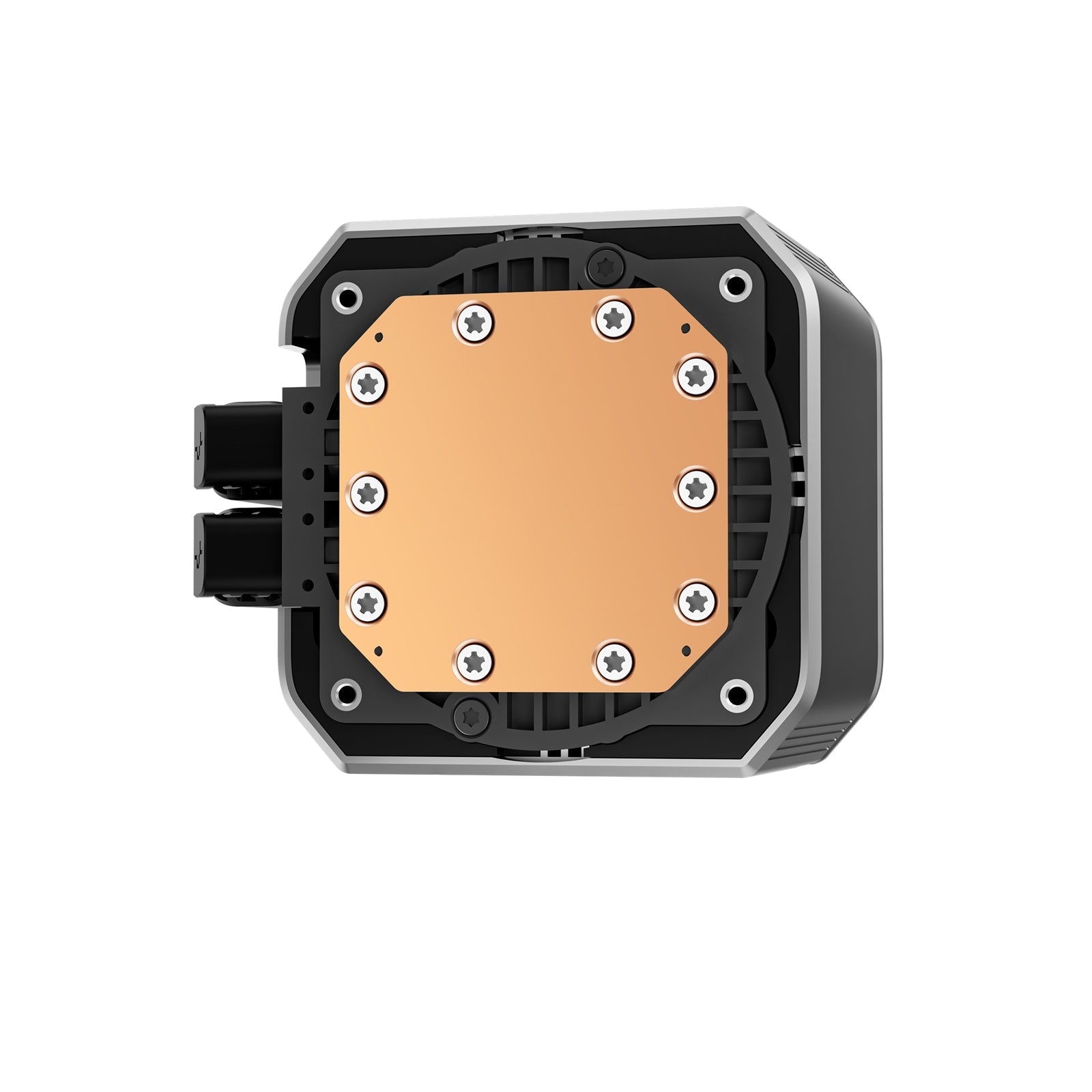

Pump Dimensions
93 x 77 x 66 mm (L x W x H)
Pump Speed
3400 RPM±10%
Pump Noise
21 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.35 A
Pump Power Consumption
4.2 W

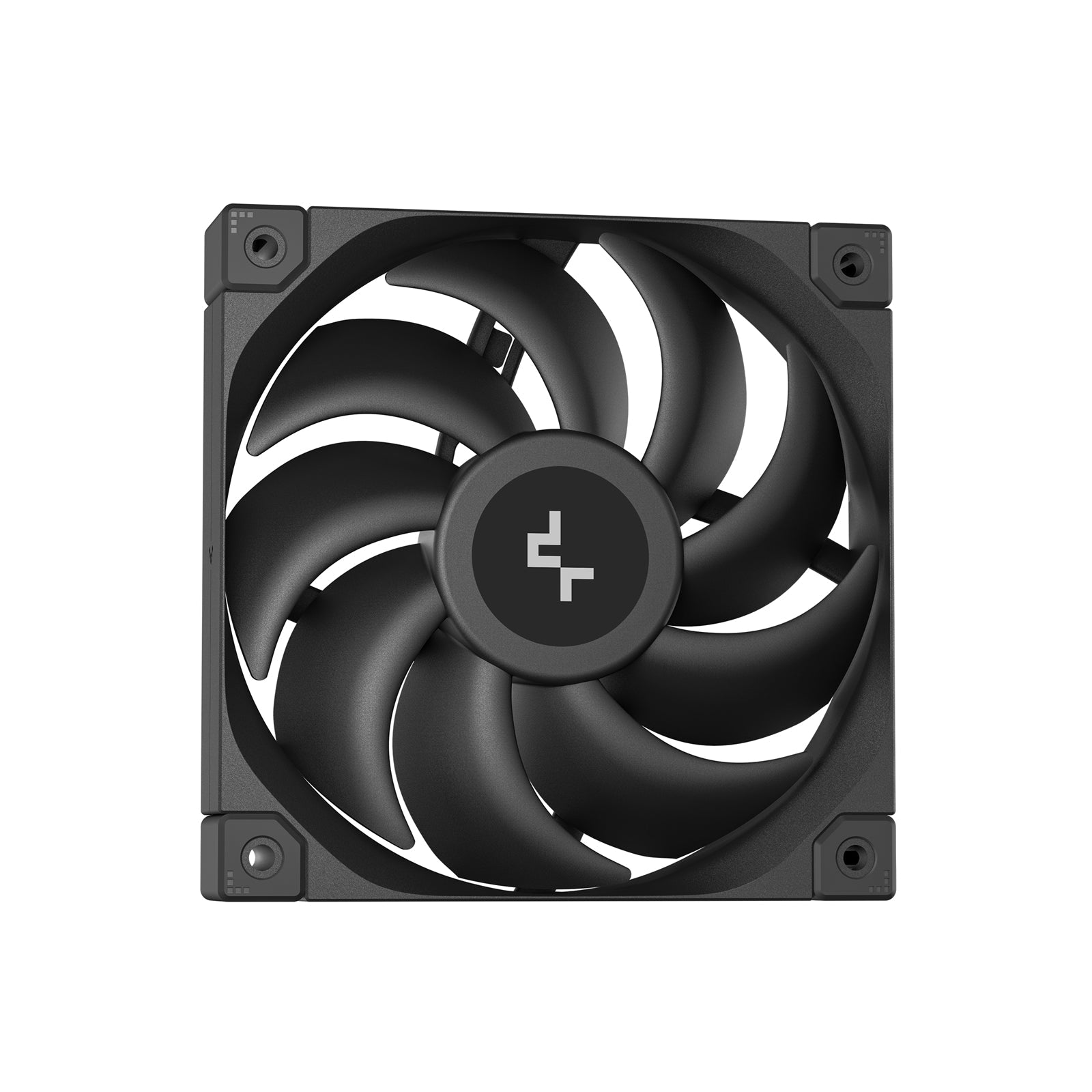

Fan Dimensions
120 x 120 x 25 mm (L x W x H)
Fan Speed
500~2150 RPM±10%
Fan Airflow
72.45 CFM
Fan Noise
=36.49 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.3 A
Fan Power Consumption
3.6 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.45 W(PUMP)
Display Specifications
2.83 inch 480 x 640 TFT LCD
